2MBI150U4H-170Fuji Electric - IGBT power module

2MBI150U4H-170 Description

The Fuji Electric 2MBI150U4H-170 is an IGBT module rated at 1700 V and 150 A, available from USComponent. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2MBI150U4H-170.

Summary of Features

Target Applications

Fuji Electric 2MBI150U4H-170 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI150U4H-170 is a 1,700 V, 150 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC)	150 A
Datasheet	Available on this page (PDF)

Download 2MBI150U4H-170 Datasheet

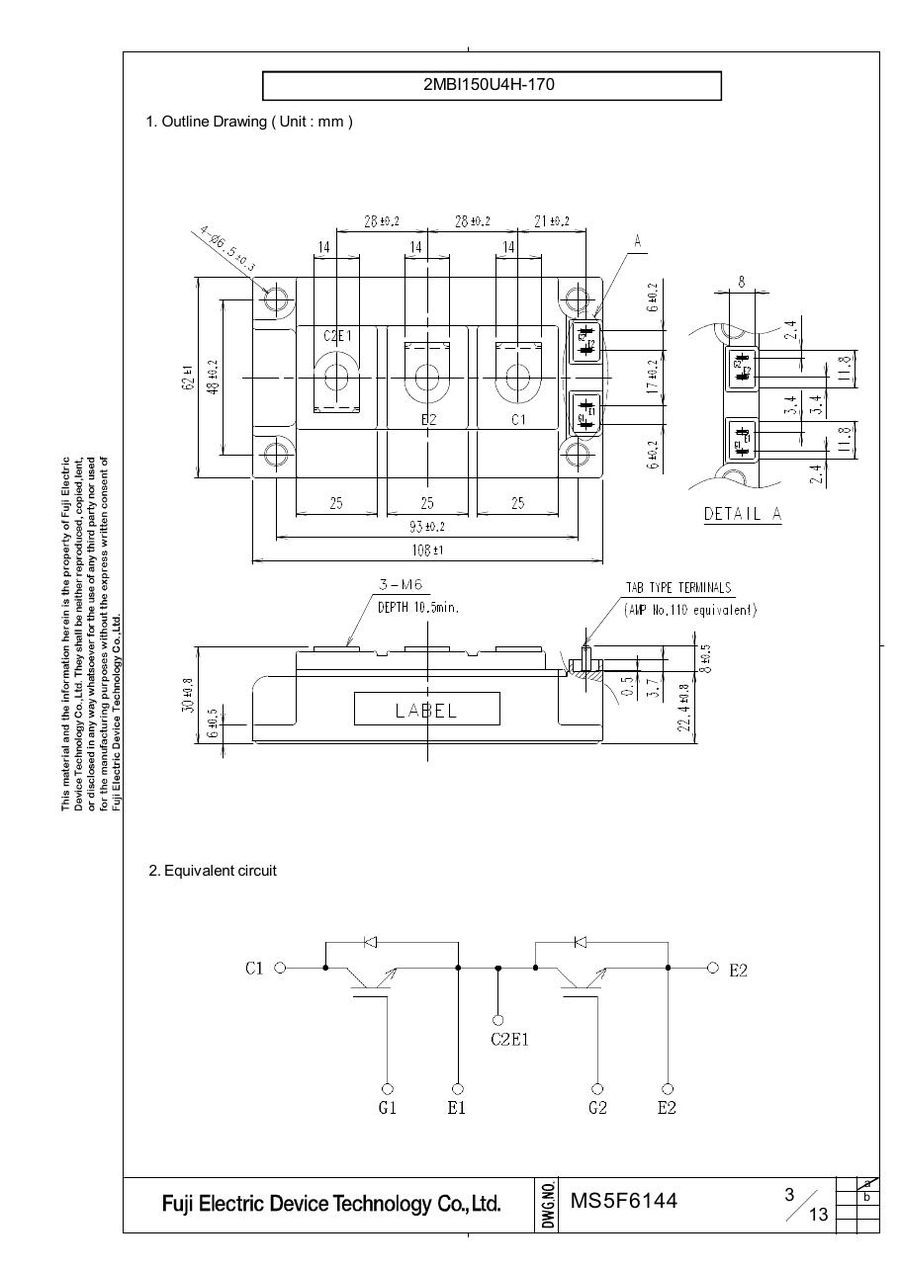

2MBI150U4H-170 PDF Datasheet
