2MBI150UB-120 Fuji Electric - IGBT power module

2MBI150UB-120 Description

Rated at 1200 V, the Fuji Electric 2MBI150UB-120 is an IGBT module. The module contains two switches in a half-bridge (2-in-1) arrangement. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

Need the 2MBI150UB-120? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Fuji Electric 2MBI150UB-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI150UB-120 is a 1,200 V, 150 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	150 A
Isolation voltage	2,500 V

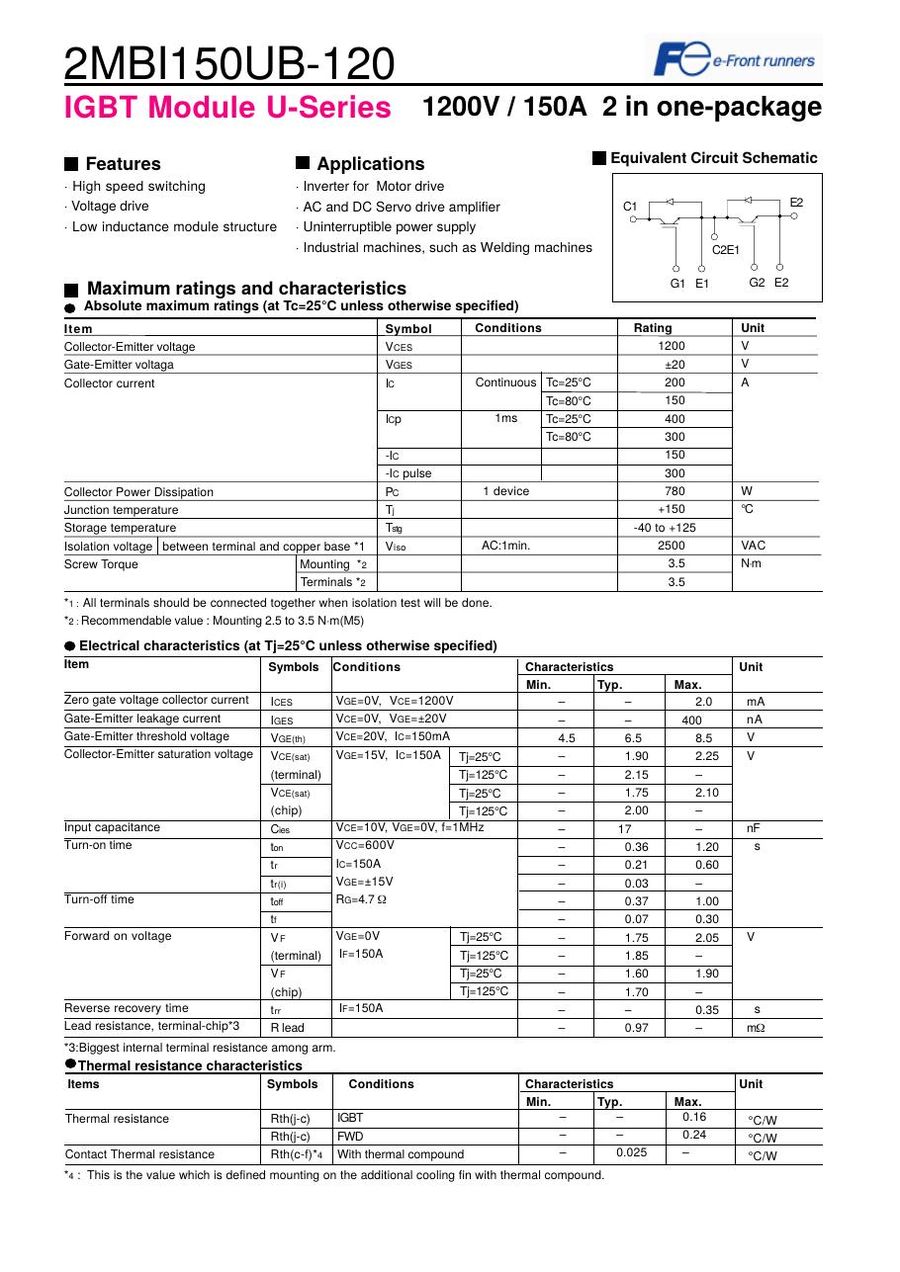

Datasheet	Available on this page (PDF)
