2DI200M-050 Fuji Electric - Bipolar Transistor Module

2DI200M-050 Description

The 2DI200M-050 from Fuji Electric is a Darlington transistor module with a 600 V / 200 A rating. It is built with two switches in a half-bridge (2-in-1) arrangement. Modules of this type were widely used in motor drives, UPS units and power supplies, and many are still running in older equipment today.

Looking for a replacement 2DI200M-050? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Fuji Electric 2DI200M-050 is used for High Power Switching, Uninterruptible Power Supply, DC Motor Controls and Welding Machines.

Key Specifications

2DI200M-050 is a 500 V, 200 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	500 V
Collector current (IC)	200 A

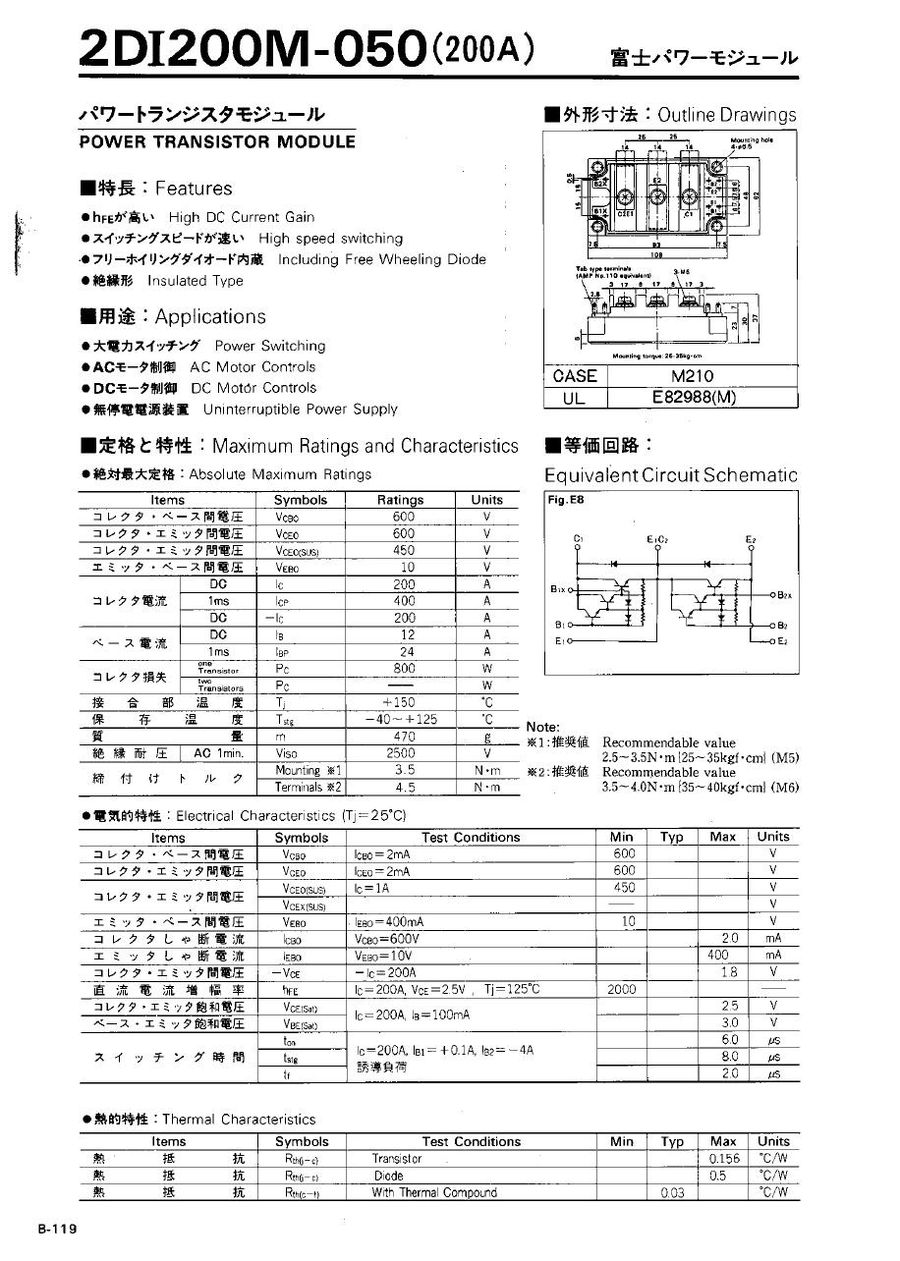

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2DI200M-050 (reply within 24 hours)
