DMP6402A Crydom - Optoelectronics

Specifications: 12(V) / 0.015(A)

DMP6402A Crydom Optoelectronics

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DMP6402A Description

Crydom DMP6402A is a power semiconductor module. It is used in industrial power electronics such as drives, converters and control equipment.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the DMP6402A, and please confirm ratings against the datasheet before ordering.

Summary of Features

Crydom DMP6402A is a Series DMP microprocessor interface AC output module (vertical PCB mount), electrical equivalent of OAC5A, opto-isolated 4000 Vrms, compatible with 5 V logic systems.

Target Applications

Crydom DMP6402A is used for interfacing field devices (switches, sensors, motor starters, valves, lamps) with PLCs, microprocessor and computer control systems.

Key Specifications

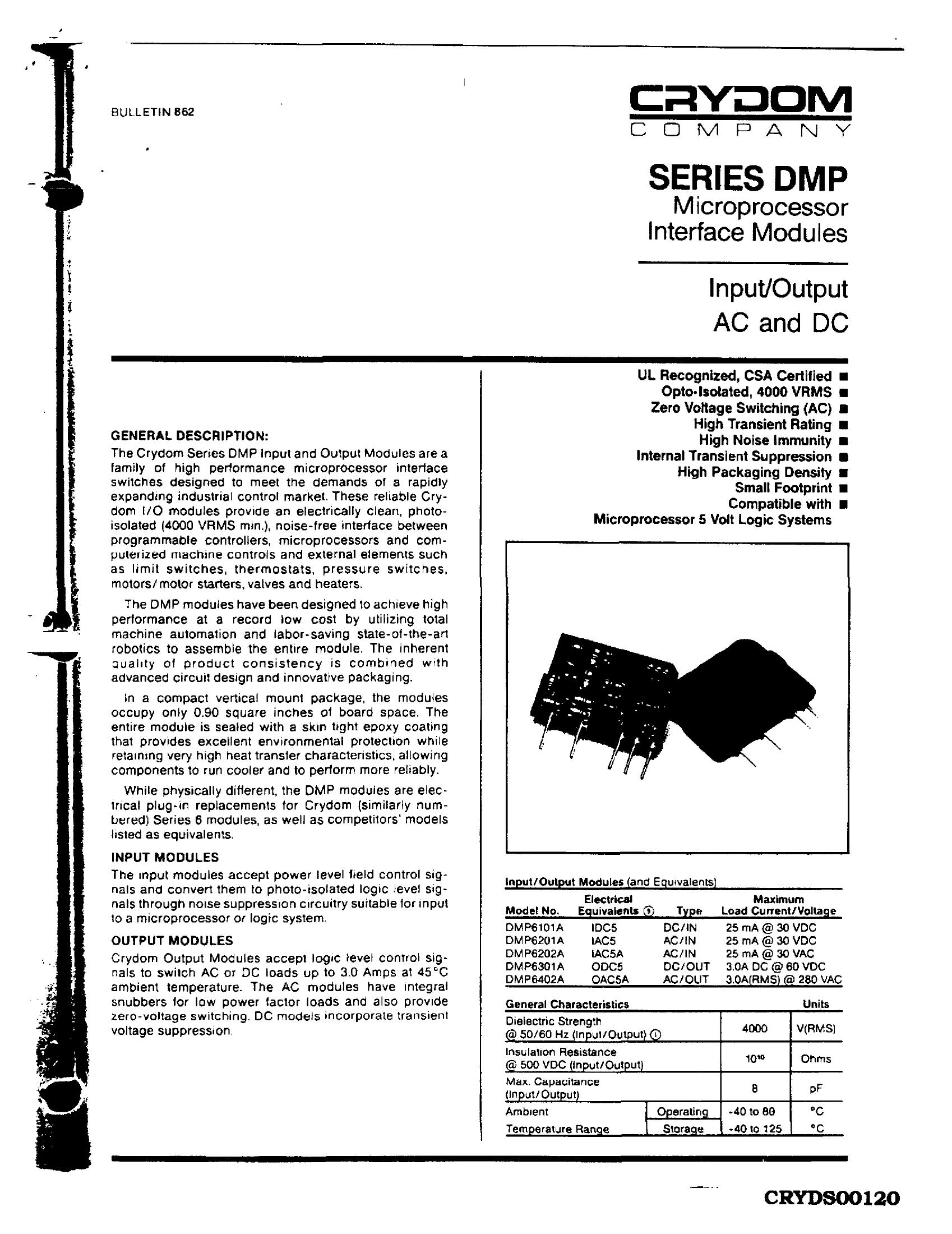

Crydom DMP6402A is a Series DMP microprocessor interface AC output module (vertical PCB mount), electrical equivalent of OAC5A, opto-isolated 4000 Vrms, compatible with 5 V logic systems. Source: Crydom Series DMP bulletin 862. Values at 25°C unless noted.

ParameterValue
TypeAC output module
Electrical equivalentOAC5A
Maximum load current / voltage3.0 A rms @ 280 VAC
Dielectric strength, input/output (50/60 Hz)4000 Vrms
Insulation resistance (500 VDC, input/output)1010 Ohm
Maximum capacitance, input/output8 pF
Ambient operating / storage temperature-40 to 80°C / -40 to 125°C

Technical document (PDF)  |  Request a quote for DMP6402A (reply within 24 hours)
