DMP6301A Crydom - Optoelectronics

DMP6301A Description

The DMP6301A from Crydom is a power semiconductor module. Parts like this are found in drives, power converters and other industrial control systems.

Request a quote for the DMP6301A and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Crydom DMP6301A is used for interfacing field devices (switches, sensors, motor starters, valves, lamps) with PLCs, microprocessor and computer control systems.

Key Specifications

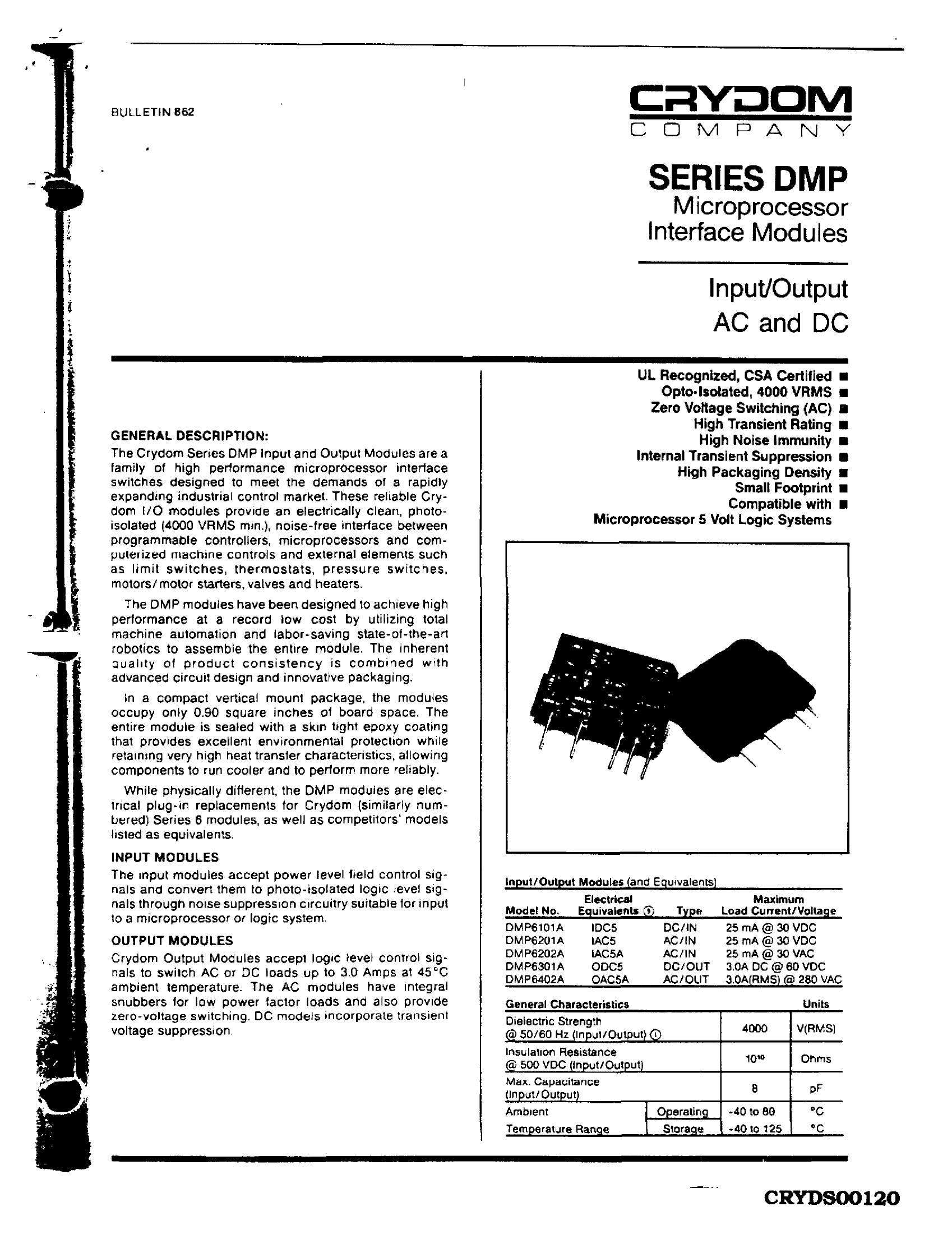

Crydom DMP6301A is a Series DMP microprocessor interface DC output module (vertical PCB mount), electrical equivalent of ODC5, opto-isolated 4000 Vrms, compatible with 5 V logic systems. Source: Crydom Series DMP bulletin 862. Values at 25°C unless noted.

Parameter	Value
Type	DC output module
Electrical equivalent	ODC5
Maximum load current / voltage	3.0 A DC @ 60 VDC
Dielectric strength, input/output (50/60 Hz)	4000 Vrms
Insulation resistance (500 VDC, input/output)	1010 Ohm
Maximum capacitance, input/output	8 pF
Ambient operating / storage temperature	-40 to 80°C / -40 to 125°C
