DMA90U1800LB IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1800V, 90A

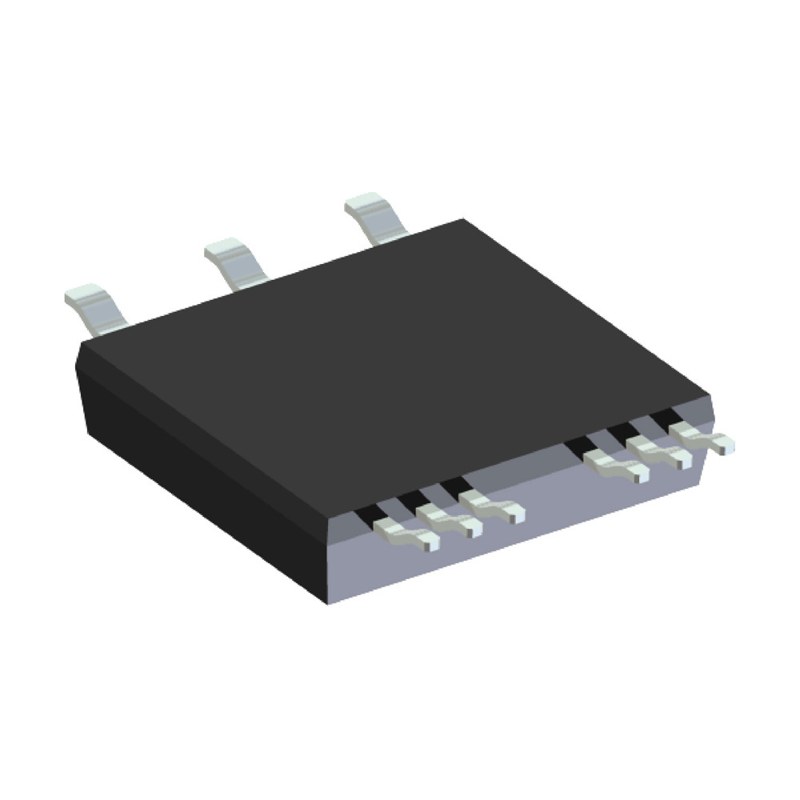

DMA90U1800LB IXYS Rectifier Bridge

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DMA90U1800LB Description

DMA90U1800LB is a 1800 V / 90 A rectifier bridge module from IXYS (SMPD package). Typical applications: line rectifying 50/60 Hz, Drives, SMPS.

USComponent supplies DMA90U1800LB and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Rectifier diode
  • Isolated back surface
  • Low coupling capacity between pins and heatsink
  • Enlarged creepage towards heatsink
  • Application friendly pinout
  • Low inductive current path
  • High reliability

Target Applications

IXYS DMA90U1800LB is used for Line rectifying 50/60 Hz, Drives, SMPS.

Key Specifications

DMA90U1800LB is a 1800 V / 90 A rectifier bridge module from IXYS (now part of Littelfuse) in a SMPD package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationThree-Phase Bridges
Repetitive peak reverse voltage (VRRM)1800 V
Average output current (IdAV)90 A
PackageSMPD
Isolation voltage3000 V~
Weight8 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DMA90U1800LB (reply within 24 hours)
