DMA200YC1600NA IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1600V, 200A

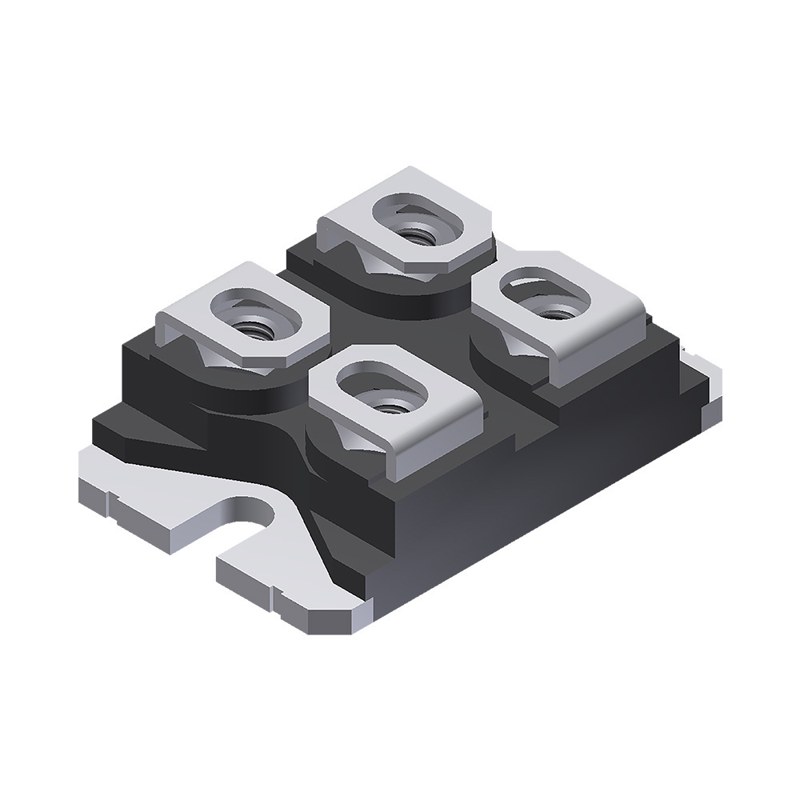

DMA200YC1600NA IXYS Rectifier Bridge

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DMA200YC1600NA Description

DMA200YC1600NA is a 1600 V / 200 A rectifier bridge module from IXYS (SOT-227B (minibloc) package). Typical applications: diode for main rectification, For single and three phase bridge configurations.

USComponent supplies DMA200YC1600NA and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour

Target Applications

IXYS DMA200YC1600NA is used for Diode for main rectification, For single and three phase bridge configurations.

Key Specifications

DMA200YC1600NA is a 1600 V / 200 A rectifier bridge module from IXYS (now part of Littelfuse) in a SOT-227B (minibloc) package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationHalf Three-phase Bridge, Common Cathode
Repetitive peak reverse voltage (VRRM)1600 V
Average output current (IdAV)200 A
PackageSOT-227B (minibloc)
Isolation voltage3000 V~
Weight30 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DMA200YC1600NA (reply within 24 hours)
