DMP6101A Description

Crydom makes the DMP6101A, a power semiconductor module. Components of this type are used in motor drives, power conversion and industrial control equipment.

Need the DMP6101A? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Crydom DMP6101A is used for interfacing field devices (switches, sensors, motor starters, valves, lamps) with PLCs, microprocessor and computer control systems.

Key Specifications

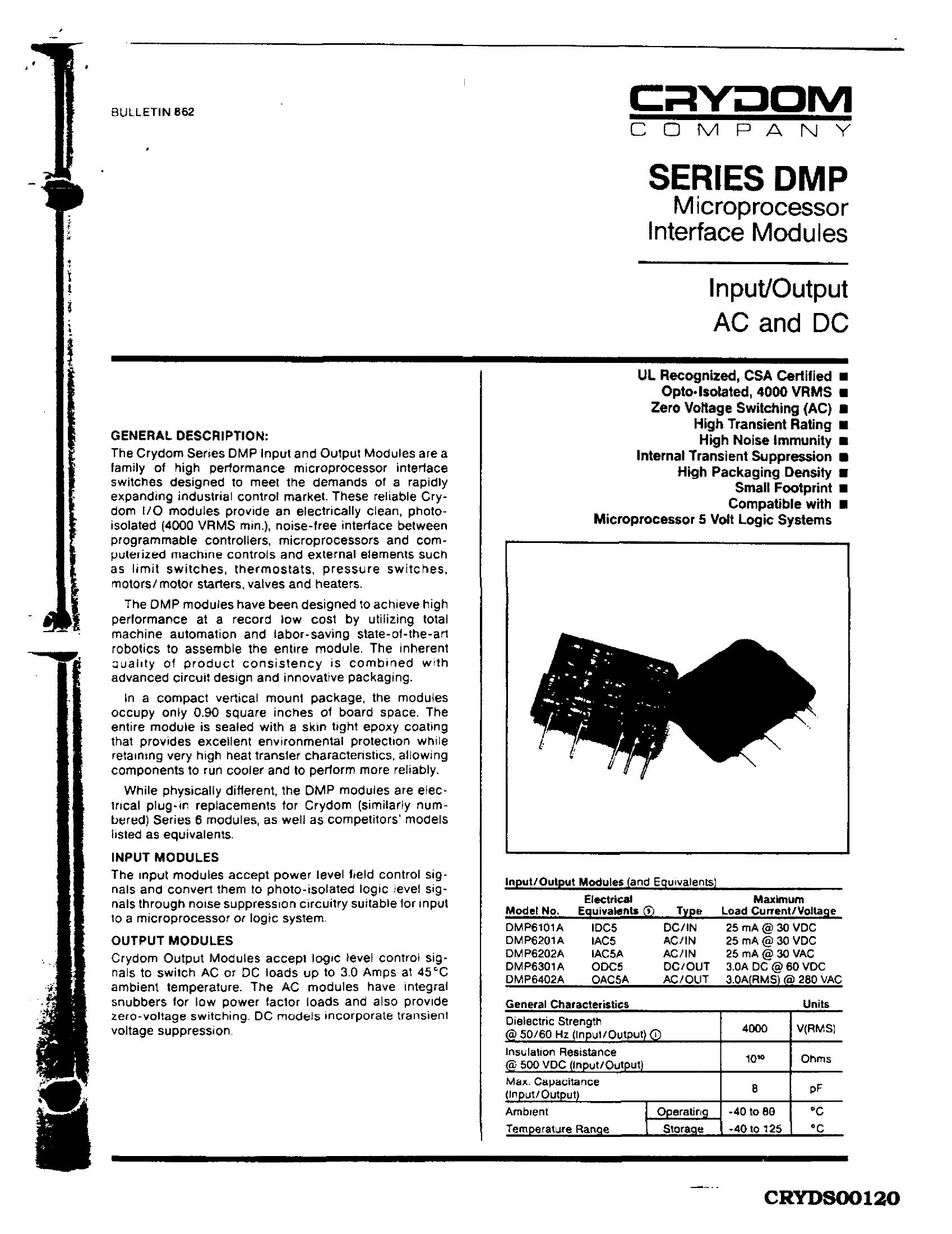

Crydom DMP6101A is a Series DMP microprocessor interface DC input module (vertical PCB mount), electrical equivalent of IDC5, opto-isolated 4000 Vrms, compatible with 5 V logic systems. Source: Crydom Series DMP bulletin 862. Values at 25°C unless noted.

Parameter	Value
Type	DC input module
Electrical equivalent	IDC5
Maximum load current / voltage	25 mA @ 30 VDC
Dielectric strength, input/output (50/60 Hz)	4000 Vrms
Insulation resistance (500 VDC, input/output)	1010 Ohm
Maximum capacitance, input/output	8 pF
Ambient operating / storage temperature	-40 to 80°C / -40 to 125°C
