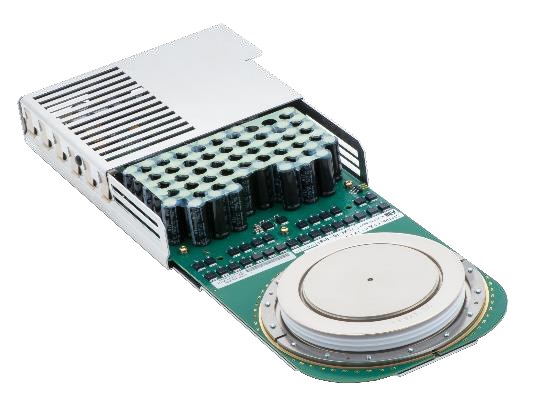

5SHY60L6500 ABB - Thyristor
Also written as: 5SHY60L6500
5SHY60L6500 Description
5SHY60L6500 is a 6500 V / 6000 A integrated gate-commutated thyristor (IGCT) from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SHY60L6500 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- High snubberless turn-off rating
- Optimized for low switching losses
- High electromagnetic immunity
- Simple control interface with status feedback
- AC or DC supply voltage
- Typical applications: HVDC, Industry
Target Applications
ABB 5SHY60L6500 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SHY60L6500 is a 6500 V / 6000 A integrated gate-commutated thyristor (IGCT) from Hitachi Energy (former ABB Semiconductors) - Asymmetric Integrated Gate-Commutated Thyristor. Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | Integrated gate-commutated thyristor (IGCT) |
| Repetitive peak off-state voltage (VDRM) | 6500 V |
| Max. controllable turn-off current (ITGQM) | 6000 A |
| DC link voltage VDC | 4600 V |
| Average on-state current ITAVM | 1900 A |
| Package (mm) | 85/26 |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SHY60L6500".
Technical document (PDF) | Request a quote for 5SHY60L6500 (reply within 24 hours)
