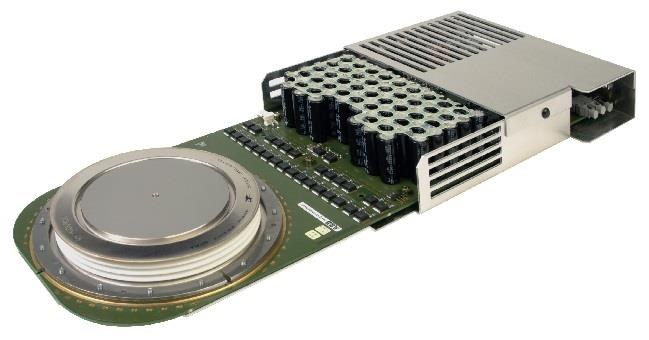

5SHX36L4520 ABB - Thyristor
Also written as: 5SHX 36L4520
5SHX36L4520 Description
5SHX36L4520 is a 4500 V / 3600 A reverse conducting IGCT from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SHX36L4520 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Preliminary
- High snubberless turn-off rating
- Optimized for low switching losses
- High electromagnetic immunity
- Simple control interface with status feedback
- AC or DC supply voltage
Target Applications
ABB 5SHX36L4520 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SHX36L4520 is a 4500 V / 3600 A reverse conducting IGCT from Hitachi Energy (former ABB Semiconductors) - Reverse Conducting Integrated. Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | Reverse conducting IGCT |
| Repetitive peak off-state voltage (VDRM) | 4500 V |
| Max. controllable turn-off current (ITGQM) | 3600 A |
| DC link voltage VDC | 2800 V |
| Average current ITAVM / IFAVM | 1040 A |
| Package (mm) | 85/26 |
| Supply status | New product (Hitachi Energy) |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SHX 36L4520".
Technical document (PDF) | Request a quote for 5SHX36L4520 (reply within 24 hours)
