MG400J1US51Toshiba - IGBT Module

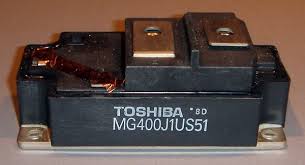

MG400J1US51 Description

Toshiba MG400J1US51 is an IGBT module rated at 600 V and 400 A. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the MG400J1US51.

Target Applications

Toshiba MG400J1US51 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Toshiba
Configuration	IGBT module
Package	Toshiba 2-109A4A
VCES	600 V
IC	400 A (DC)
ICP	800 A (1 ms)
VCE(sat) max.	2.70 V @ 400 A (typ. 2.10 V)
Screw torque	Terminal M4 / M6 / mounting: 2 / 3 / 3 N·m
Weight	465 g
Junction temperature	150 °C max.
