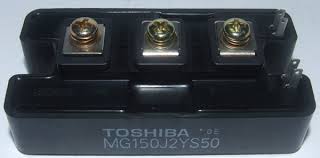

MG150J2YS50Toshiba - IGBT Module

MG150J2YS50 Description

Toshiba MG150J2YS50 is an IGBT module rated at 600 V and 150 A. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the MG150J2YS50.

Target Applications

Toshiba MG150J2YS50 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Toshiba
Configuration	Dual IGBT module (complete half bridge) with free-wheeling diodes
Package	Toshiba 2-95A1A
VCES	600 V
IC	150 A (DC)
ICP	300 A (1 ms)
VCE(sat) typ.	2.10 V @ 150 A
Collector power dissipation	780 W (TC = 25 °C)
Isolation voltage	2500 V (AC, 1 min)
Screw torque	Terminal / mounting: 3 / 3 N·m
Junction temperature	150 °C max.
