SKiM450GD126D Semikron - IGBT Module

Also written as: SKiM 450GD126D

Category: IGBT Modules

Specifications: 1200V, 390A

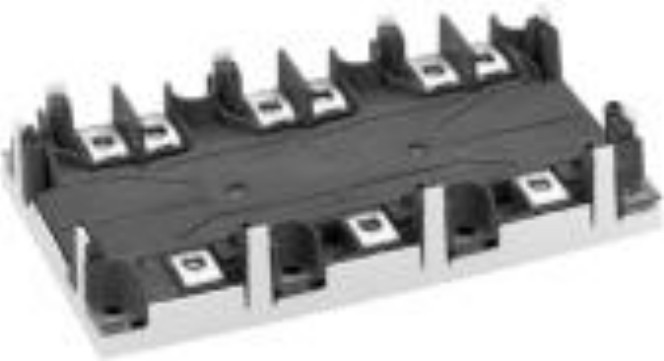

SKiM450GD126D Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKiM450GD126D Description

SKiM450GD126D is a 1200 V / 390 A 6-pack (3-phase inverter) IGBT module from Semikron Danfoss (SKiM 5 package). Typical applications: uninterruptible power supplies (UPS), Three phase inverters for AC motor speed control.

USComponent supplies SKiM450GD126D and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Trench gate IGBT with field stop layer
  • Low inductance case
  • Fast & soft inverse CAL diodes
  • Isolated by Al2O3 DCB (Direct Copper Bonded) ceramic plate
  • Pressure contact technology for thermal contacts
  • Spring contact system to attach driver PCB to the control terminals
  • Integrated temperature sensor

Target Applications

Semikron SKiM450GD126D is used for Uninterruptible power supplies (UPS), Three phase inverters for AC motor speed control.

Key Specifications

SKiM450GD126D is a 1200 V / 390 A 6-pack (3-phase inverter) IGBT module from Semikron Danfoss (SKiM 5 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSKiM
Configuration6-pack (3-phase inverter)
Collector-emitter voltage (VCES)1200 V
Collector current IC (Tc = 25 °C)390 A
Collector current IC (Tc = 70 °C)300 A
Chip technologyIGBT 3 (Trench)
PackageSKiM 5
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKiM450GD126D (reply within 24 hours)
