SKiM400GD126DM Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 300A

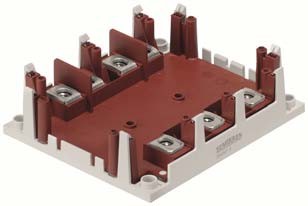

SKiM400GD126DM Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKiM400GD126DM Description

SKiM400GD126DM is a 1200 V / 300 A six-pack IGBT module from Semikron Danfoss (SKiM 4 package). Typical applications: switched mode power supplies, Three phase inverters for AC motor speed control, Switching (not for linear use).

USComponent supplies SKiM400GD126DM and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Trench gate IGBT with field stop layer
  • Low inductance case
  • Fast & soft inverse CAL diodes
  • Isolated by AIN DCB (Direct Copper Bonded) ceramic plate
  • Pressure contact technology for thermal contacts
  • Spring contact system to attach driver PCB to the control terminals
  • Integrated temperature sensor

Target Applications

Semikron SKiM400GD126DM is used for Switched mode power supplies, Three phase inverters for AC motor speed control, Switching (not for linear use).

Key Specifications

SKiM400GD126DM is a 1200 V / 300 A six-pack IGBT module from Semikron Danfoss (SKiM 4 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
ConfigurationSix-pack
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)300 A
Chip technologyIGBT 3 (Trench)
PackageSKiM 4
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKiM400GD126DM (reply within 24 hours)
