SKiM401TMLI12E4B Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 400A

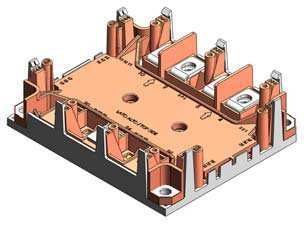

SKiM401TMLI12E4B Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKiM401TMLI12E4B Description

SKiM401TMLI12E4B is a 1200 V / 400 A 3-level IGBT module from Semikron Danfoss (SKiM 4 package). Typical applications: automotive inverter, High reliability AC inverter drives.

USComponent supplies SKiM401TMLI12E4B and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • IGBT 4 Trench Gate Technology
  • Solder technology
  • VCE(sat) with positive temperature coefficient
  • Low inductance case
  • Isolated by Al2O3 DCB (Direct Copper Bonded) ceramic substrate
  • Pressure contact technology for thermal contacts
  • Spring contact system to attach driver PCB to the control terminals
  • High short circuit capability, self limiting to 6 x IC

Target Applications

Semikron SKiM401TMLI12E4B is used for Automotive inverter, High reliability AC inverter drives.

Key Specifications

SKiM401TMLI12E4B is a 1200 V / 400 A 3-level IGBT module from Semikron Danfoss (SKiM 4 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)400 A
Chip technologyIGBT 4 (Trench)
PackageSKiM 4
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKiM401TMLI12E4B (reply within 24 hours)
