SKiM270GD176D Semikron - IGBT Module

Also written as: SKiM 270GD176D

Category: IGBT Modules

Specifications: 1700V, 260A

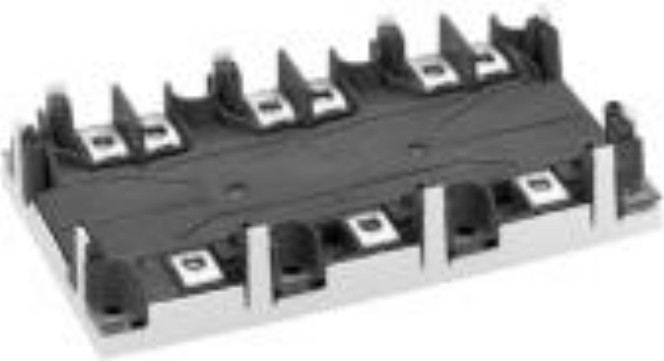

SKiM270GD176D Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKiM270GD176D Description

SKiM270GD176D is a 1700 V / 260 A 6-pack (3-phase inverter) IGBT module from Semikron Danfoss (SKiM 5 package). Typical applications: aC inverter drives mains 575 - 750 V AC, Public transport (auxiliary systems).

USComponent supplies SKiM270GD176D and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Homogeneous Si
  • Trench = Trenchgate technology
  • Low inductance case
  • Isolated by Al2O3 DCB (Direct Copper Bonded) ceramic plate
  • Pressure contact technology for thermal contacts
  • VCE(sat) with positive temperature coefficient
  • High short circuit capability, self limiting to 6 x IC
  • Integrated temperature sensor
  • Spring contact system to attach driver PCB to the auxiliary terminals

Target Applications

Semikron SKiM270GD176D is used for AC inverter drives mains 575 - 750 V AC, Public transport (auxiliary systems).

Key Specifications

SKiM270GD176D is a 1700 V / 260 A 6-pack (3-phase inverter) IGBT module from Semikron Danfoss (SKiM 5 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSKiM
Configuration6-pack (3-phase inverter)
Collector-emitter voltage (VCES)1700 V
Collector current IC (Tc = 25 °C)260 A
Collector current IC (Tc = 70 °C)180 A
Chip technologyIGBT 3 (Trench)
PackageSKiM 5
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKiM270GD176D (reply within 24 hours)
