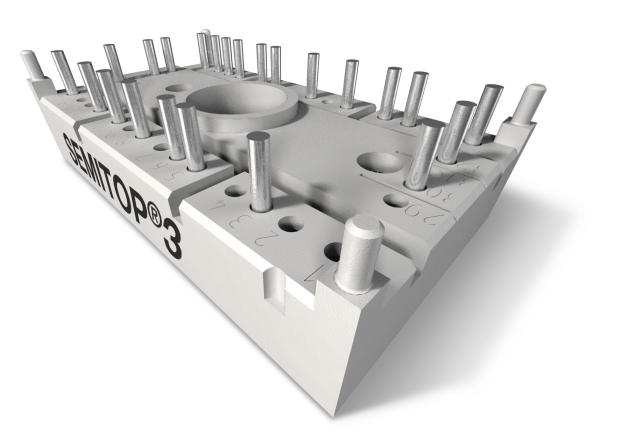

SK60GB125 Semikron - IGBT Module

SK60GB125 Description

SK60GB125 is a 1200 V / 50 A half-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package). Typical applications: switching (not for linear use), Inverter.

USComponent supplies SK60GB125 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SK60GB125 is used for Switching (not for linear use), Inverter.

Key Specifications

SK60GB125 is a 1200 V / 50 A half-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITOP
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	50 A
Chip technology	NPT IGBT (Ultrafast)
Package	SEMITOP 3
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Note: Semikron writes this part number as "SK 60 GB 125".
