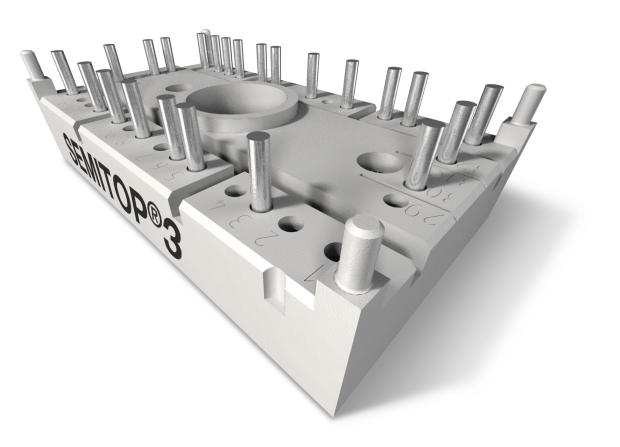

SK75GB12T4T Semikron - IGBT Module

SK75GB12T4T Description

SK75GB12T4T is a 1200 V / 75 A half-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package).

USComponent supplies SK75GB12T4T and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SK75GB12T4T finds applications in various industries and systems where high power switching is required.

Key Specifications

SK75GB12T4T is a 1200 V / 75 A half-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITOP
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	75 A
Chip technology	IGBT 4 (Trench)
Package	SEMITOP 3
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Note: Semikron writes this part number as "SK 75 GB 12T4 T".

Technical document (PDF)  |  Request a quote for SK75GB12T4T (reply within 24 hours)
