SK75GHL07F3TD1 Semikron - IGBT Module

Also written as: SK 75 GHL 07F3TD1

Category: IGBT Modules

Specifications: 650V, 75A

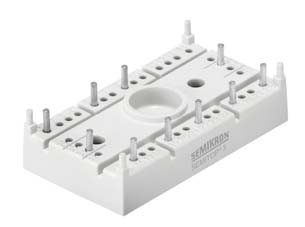

SK75GHL07F3TD1 Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SK75GHL07F3TD1 Description

SK75GHL07F3TD1 is a 650 V / 75 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package). Typical applications: inverter, Welding.

USComponent supplies SK75GHL07F3TD1 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Compact design
  • One screw mounting module
  • Optimum heat transfer and insulation through direct copper bonding aluminum oxide ceramic (DBC)
  • 650V Trench3 Fast IGBT technology
  • 650V Rapid switching diode
  • Integrated NTC temperature sensor

Target Applications

Semikron SK75GHL07F3TD1 is used for Inverter, Welding.

Key Specifications

SK75GHL07F3TD1 is a 650 V / 75 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSEMITOP
ConfigurationH-bridge
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)75 A
Chip technologyIGBT 3 (Trench)
PackageSEMITOP 3
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Note: Semikron writes this part number as "SK 75 GHL 07F3TD1".

Technical document (PDF)  |  Request a quote for SK75GHL07F3TD1 (reply within 24 hours)
