SK35GAR12T4 Semikron - IGBT Module

Also written as: SK 35 GAR 12T4

Category: IGBT Modules

Specifications: 1200V, 35A

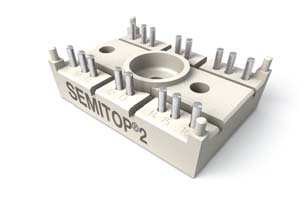

SK35GAR12T4 Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SK35GAR12T4 Description

SK35GAR12T4 is a 1200 V / 35 A chopper IGBT module from Semikron Danfoss (SEMITOP 2 package). Typical applications: inverter.

USComponent supplies SK35GAR12T4 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Compact design
  • One screw mounting
  • Heat transfer and isolation through direct copper bonded aluminium oxide ceramic (DCB)
  • High short circuit capability
  • Trench4 IGBT technology
  • CAL4F diode technology
  • VCE,sat with positive coefficient

Target Applications

Semikron SK35GAR12T4 is used for Inverter.

Key Specifications

SK35GAR12T4 is a 1200 V / 35 A chopper IGBT module from Semikron Danfoss (SEMITOP 2 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSEMITOP
ConfigurationChopper
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)35 A
Chip technologyIGBT 4 (Trench)
PackageSEMITOP 2
Supply status (Semikron)Not for new designs
DatasheetAvailable on this page (PDF)

Status: Semikron Danfoss lists SK35GAR12T4 as not for new designs. USComponent can still source SK35GAR12T4 and help you find a suitable alternative.

Note: Semikron writes this part number as "SK 35 GAR 12T4".

Technical document (PDF)  |  Request a quote for SK35GAR12T4 (reply within 24 hours)
