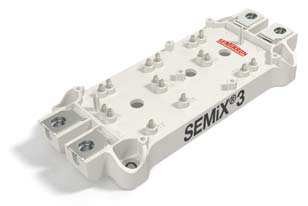

SEMiX653GB176HDs Semikron - IGBT Module

SEMiX653GB176HDs Description

SEMiX653GB176HDs is a 1700 V / 450 A half-bridge IGBT module from Semikron Danfoss (SEMiX 3s package). Typical applications: AC inverter drives, Electronic welders.

USComponent supplies SEMiX653GB176HDs and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX653GB176HDs-M04 / -M06 (pre-applied TIM: HALA P8 / HALA HT).

Summary of Features

Target Applications

Semikron SEMiX653GB176HDs is used for AC inverter drives, Electronic welders.

Key Specifications

SEMiX653GB176HDs is a 1700 V / 450 A half-bridge IGBT module from Semikron Danfoss (SEMiX 3s package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMiX
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1700 V
Nominal collector current (IC nom)	450 A
Chip technology	IGBT 3 (Trench)
Package	SEMiX 3s
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)
