SEMIX653GAL176HDSSemikron - IGBT Module

SEMIX653GAL176HDS Description

The Semikron SEMIX653GAL176HDS is an IGBT module, available from USComponent. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the SEMIX653GAL176HDS.

Summary of Features

Target Applications

Semikron SEMIX653GAL176HDS is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

SEMIX653GAL176HDS is a 1,700 V, 450 A power component. Source: manufacturer datasheet.

Parameter	Value
Rated voltage	1,700 V
Rated current	450 A
Isolation voltage	4,000 V
Datasheet	Available on this page (PDF)

Download SEMIX653GAL176HDS Datasheet

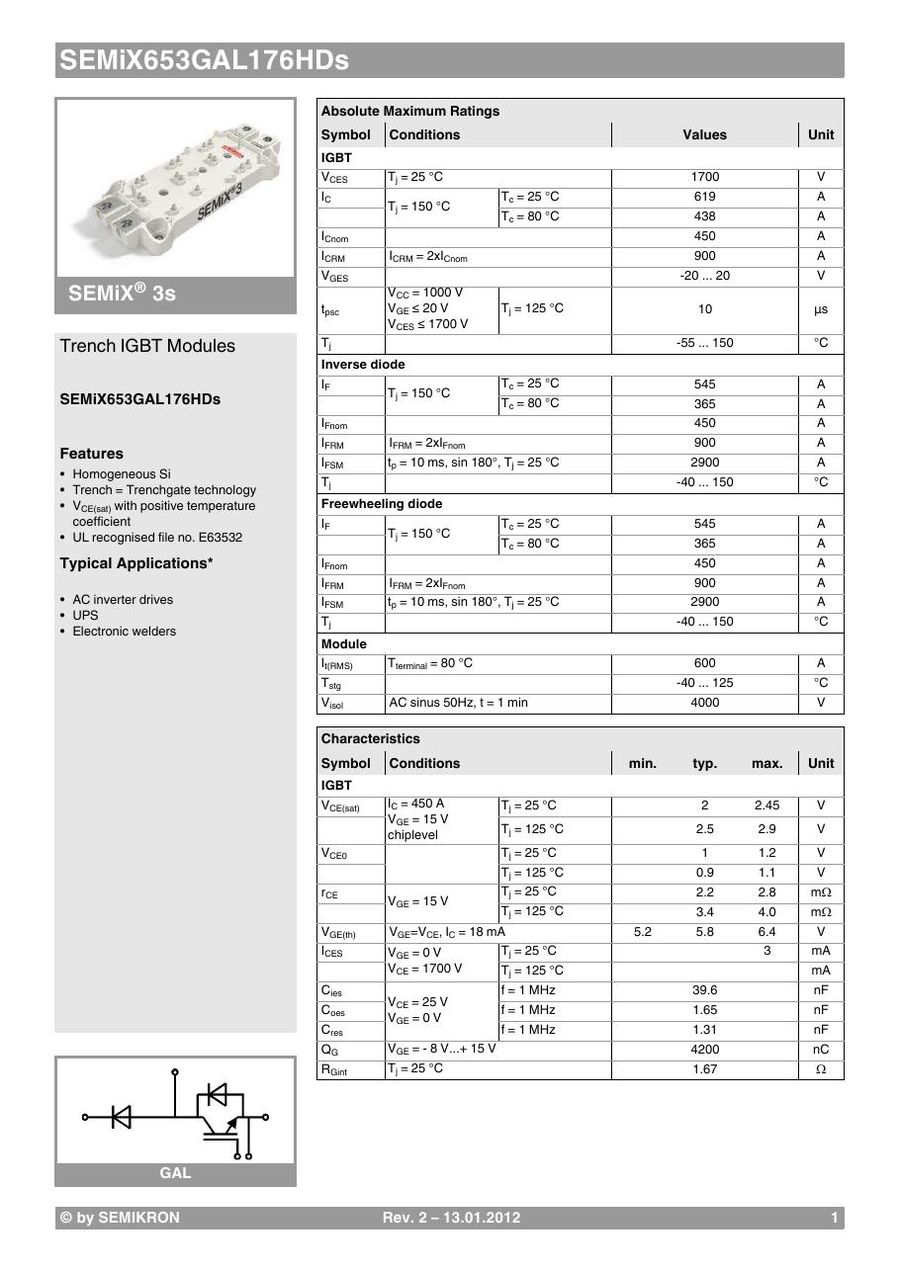

SEMIX653GAL176HDS PDF Datasheet
