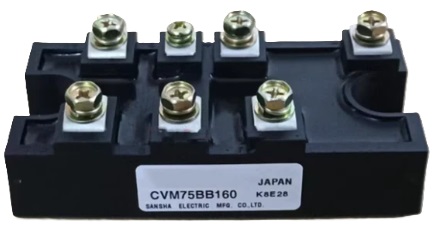

CVM75BB160SanRex - Thyristor / Diode Module

CVM75BB160 Description

CVM75BB160 is a bridge rectifier diode. It is designed to convert alternating current (AC) power into direct current (DC) power. The diode consists of four diodes connected in a bridge configuration, which allows for full-wave rectification of AC power. The CVM75BB160 has a maximum forward current rating of 75A and a maximum repetitive reverse voltage rating of 1600V. It is a high power diode that is typically used in industrial applications such as power supplies, motor drives, and welding equipment. The diode is housed in a package that provides good thermal conductivity and electrical insulation. It has four terminals for easy connection to external circuitry. The CVM75BB160 is designed to be durable and reliable, with a long service life under normal operating conditions. Overall, the CVM75BB160 bridge rectifier diode is a high-performance component that is suitable for a wide range of industrial applications where high power and reliable operation are required.

Target Applications

SanRex CVM75BB160 is used for Welding and Plasma Cutting machines, Rectifier in Switch Mode Power Suppllies (SMPS), Uninterrutible Power Supplies (UPS) and Motor drives.

Key Specifications

Manufacturer	SanRex
Category	Thyristor / Diode Modules
Rated voltage	1600 V
Rated current	75 A

CVM75BB160 Video

Download CVM75BB160 Datasheet

Datasheet not available
