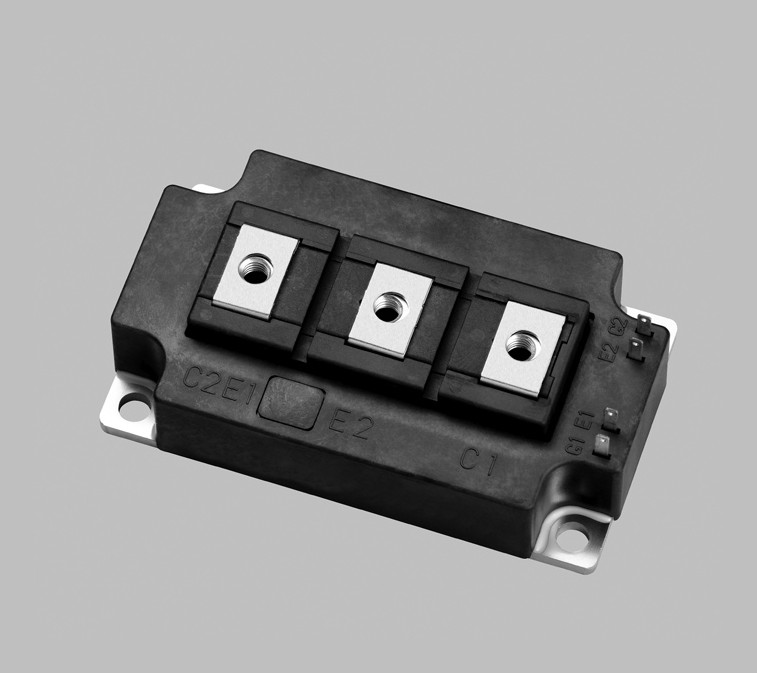

CM150DC-24NFMPowerex - IGBT Power Module

CM150DC-24NFM Description

The Powerex CM150DC-24NFM is an IGBT module. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM150DC-24NFM.

Summary of Features

Target Applications

Powerex CM150DC-24NFM is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM150DC-24NFM is a 1,200 V, 150 A IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	150 A
Isolation voltage	2,500 V
Datasheet	Available on this page (PDF)

Download CM150DC-24NFM Datasheet

CM150DC-24NFM PDF Datasheet
