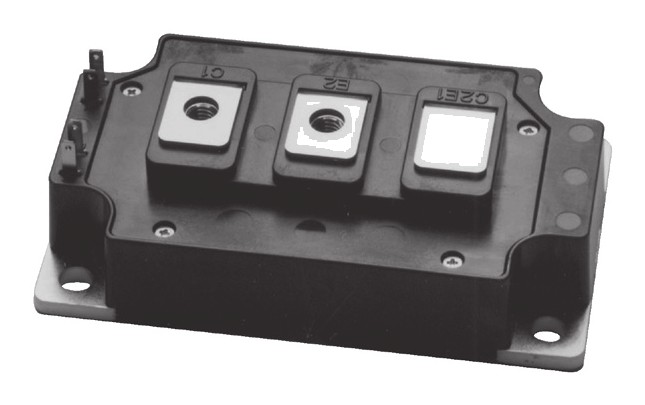

CM300DY-24S Powerex - IGBT Module

CM300DY-24S Description

The CM300DY-24S from Powerex is an IGBT module. Inside, it has two switches in a half-bridge (2-in-1) arrangement. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

Request a quote for the CM300DY-24S and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Powerex CM300DY-24S is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM300DY-24S is a 1,200 V, 300 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	300 A
Datasheet	Available on this page (PDF)
