TM400DZ-MMitsubishi - Thyristor Module

TM400DZ-M Description

The Mitsubishi Electric TM400DZ-M is a thyristor module rated at 400 V and 400 A, available from USComponent. Typical applications for this type of device include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM400DZ-M.

Summary of Features

Target Applications

Mitsubishi TM400DZ-M is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM400DZ-M is a 400 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	400 A
Datasheet	Available on this page (PDF)

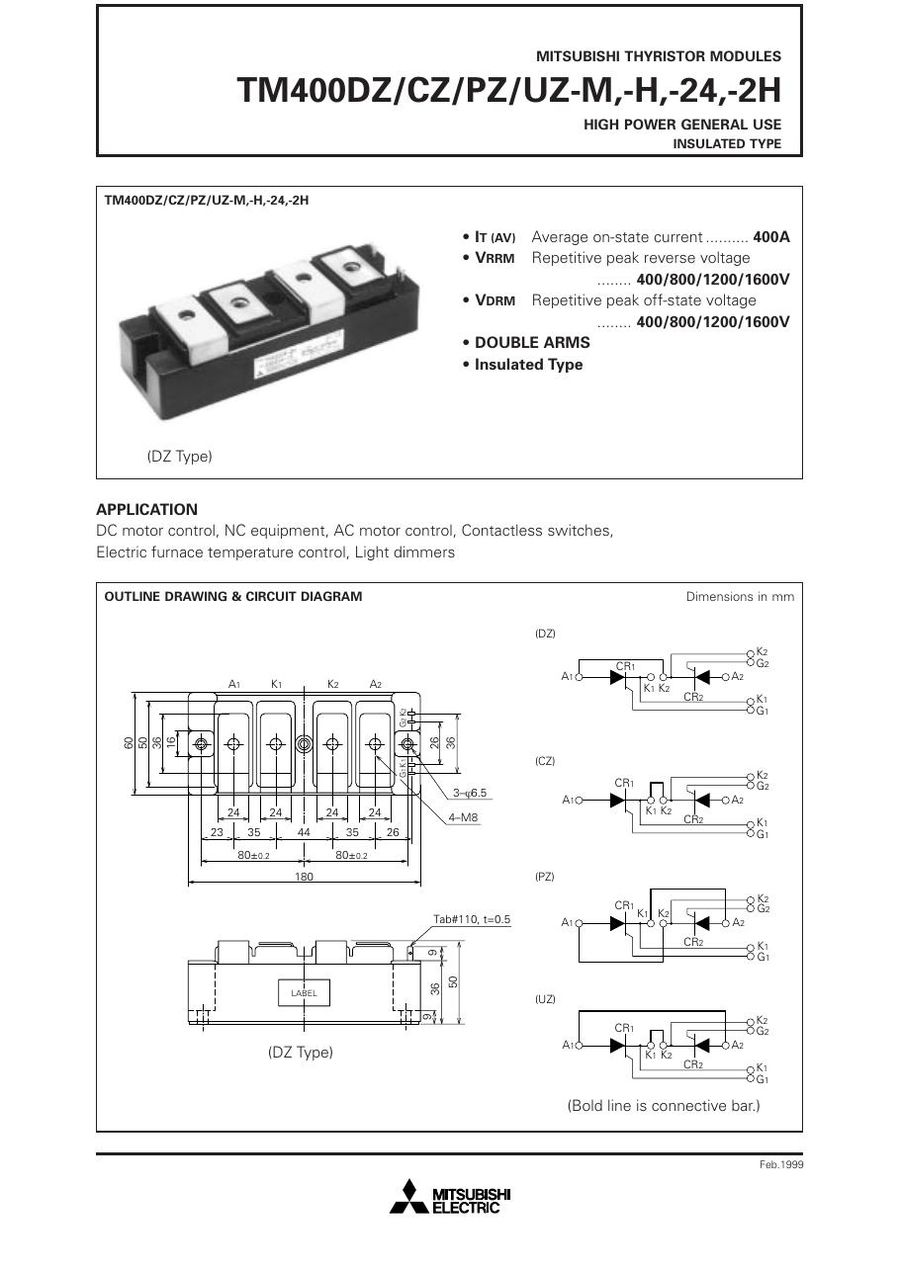

Download TM400DZ-M Datasheet

TM400DZ-M PDF Datasheet
