TM55EZ-MMitsubishi - Thyristor / Diode Module

TM55EZ-M Description

The Mitsubishi Electric TM55EZ-M is a thyristor module rated at 400 V and 55 A, available from USComponent. Components of this type are commonly used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM55EZ-M.

Target Applications

Mitsubishi TM55EZ-M is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Thyristor / Diode Module
Rated voltage	400 V
Rated current	55 A

Download TM55EZ-M Datasheet

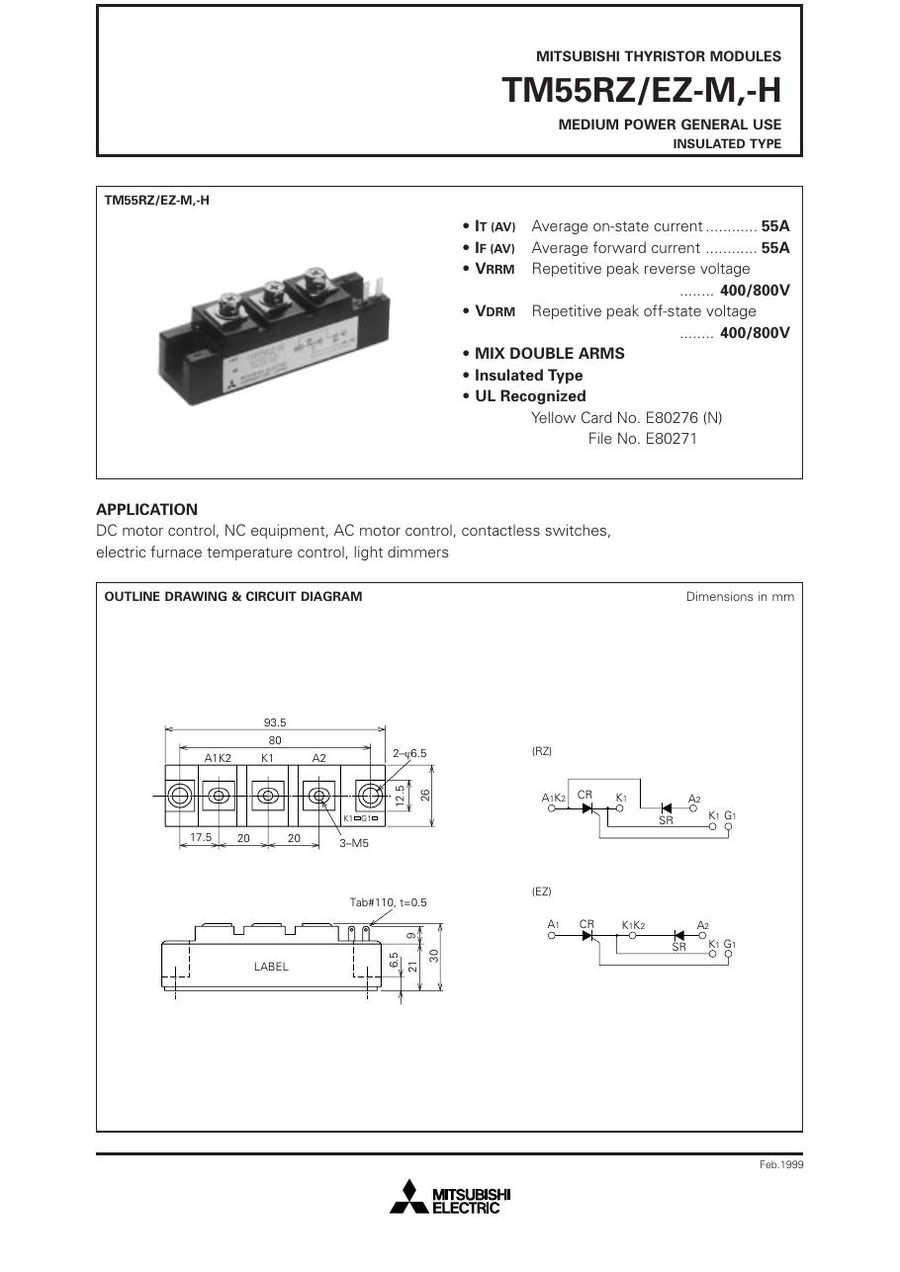

TM55EZ-M PDF Datasheet
