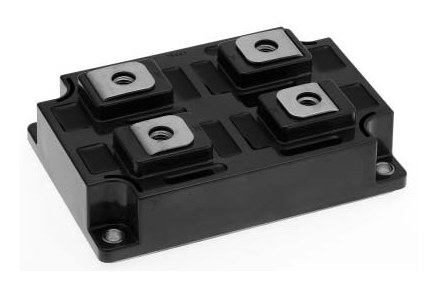

RM1200HE-66S Mitsubishi - Power Transistor Module

RM1200HE-66S Description

RM1200HE-66S is a high voltage diode module, 1 element in a pack, AlSiC baseplate from Mitsubishi Electric, rated 3300V, 1200A. Typical applications: Traction drives, high reliability converters / inverters and DC choppers.

USComponent supplies RM1200HE-66S and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi RM1200HE-66S is used for Traction drives, high reliability converters / inverters and DC choppers.

Key Specifications

RM1200HE-66S is a high voltage diode module, 1 element in a pack, AlSiC baseplate from Mitsubishi Electric, rated 3300V, 1200A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Mitsubishi Electric
Repetitive peak reverse voltage VRRM	3300 V
DC forward current IF (TC = 25 °C)	1200 A
Surge forward current IFSM	9600 A
Reverse recovery time trr	1.4 µs max.
Isolation voltage	6000 V
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for RM1200HE-66S (reply within 24 hours)
