RM100HA-20FMitsubishi - Diode Module

RM100HA-20F Description

The Mitsubishi Electric RM100HA-20F is a diode module rated at 1000 V and 100 A, available from USComponent. DIODE RECTIFIER BRIDGE SINGLE 1000V 100A 2DIP. Components of this type are commonly used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM100HA-20F.

Target Applications

Mitsubishi RM100HA-20F is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Diode Module
Rated voltage	1000 V
Rated current	100 A

Download RM100HA-20F Datasheet

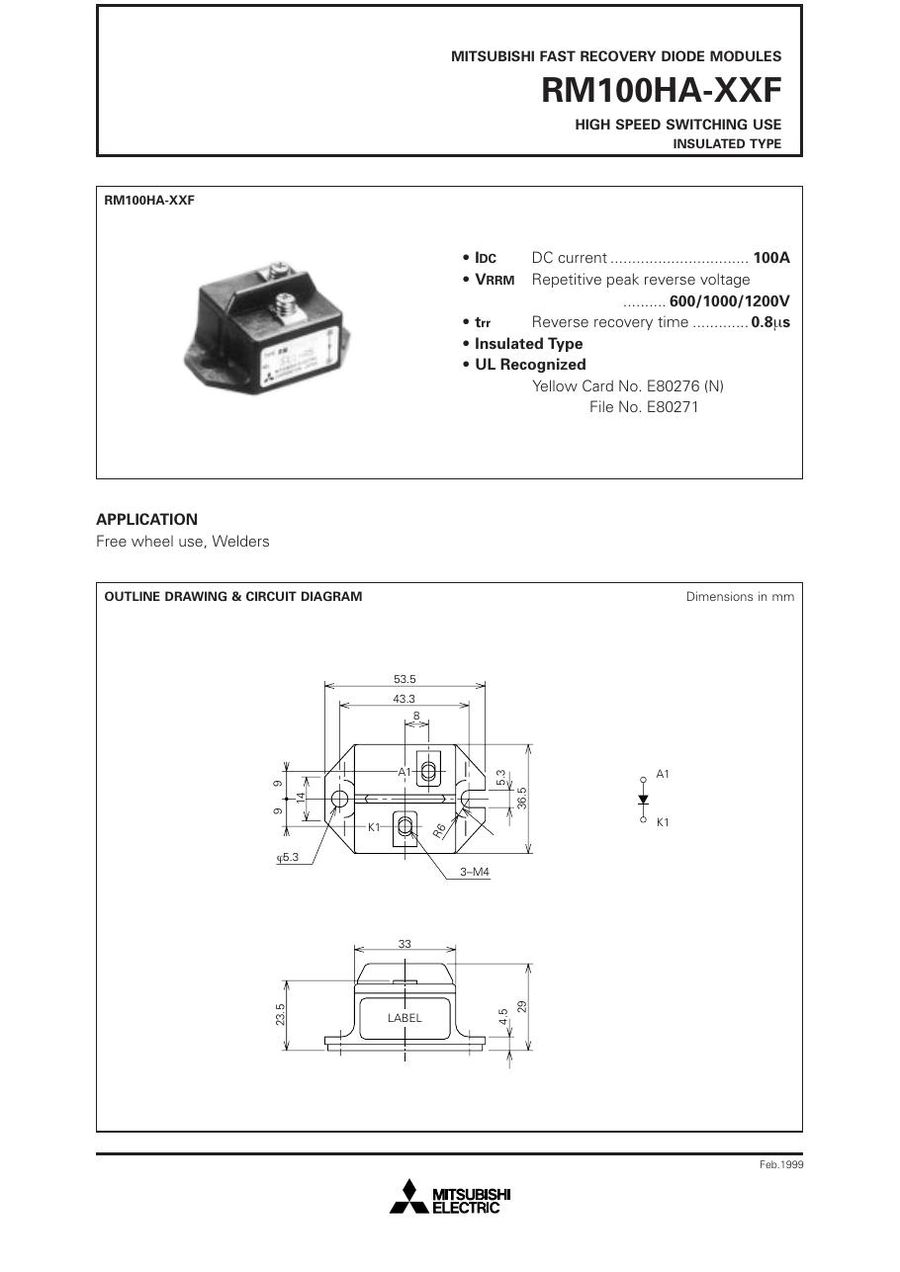

RM100HA-20F PDF Datasheet
