RM100HA-12F Mitsubishi - Diode Module

RM100HA-12F Description

The RM100HA-12F from Mitsubishi Electric is a diode module with a 600 V / 100 A rating. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.

Need the RM100HA-12F? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi RM100HA-12F is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM100HA-12F is a 600 V, 100 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Repetitive peak reverse voltage (VRRM)	600 V
Rated forward / output current	100 A

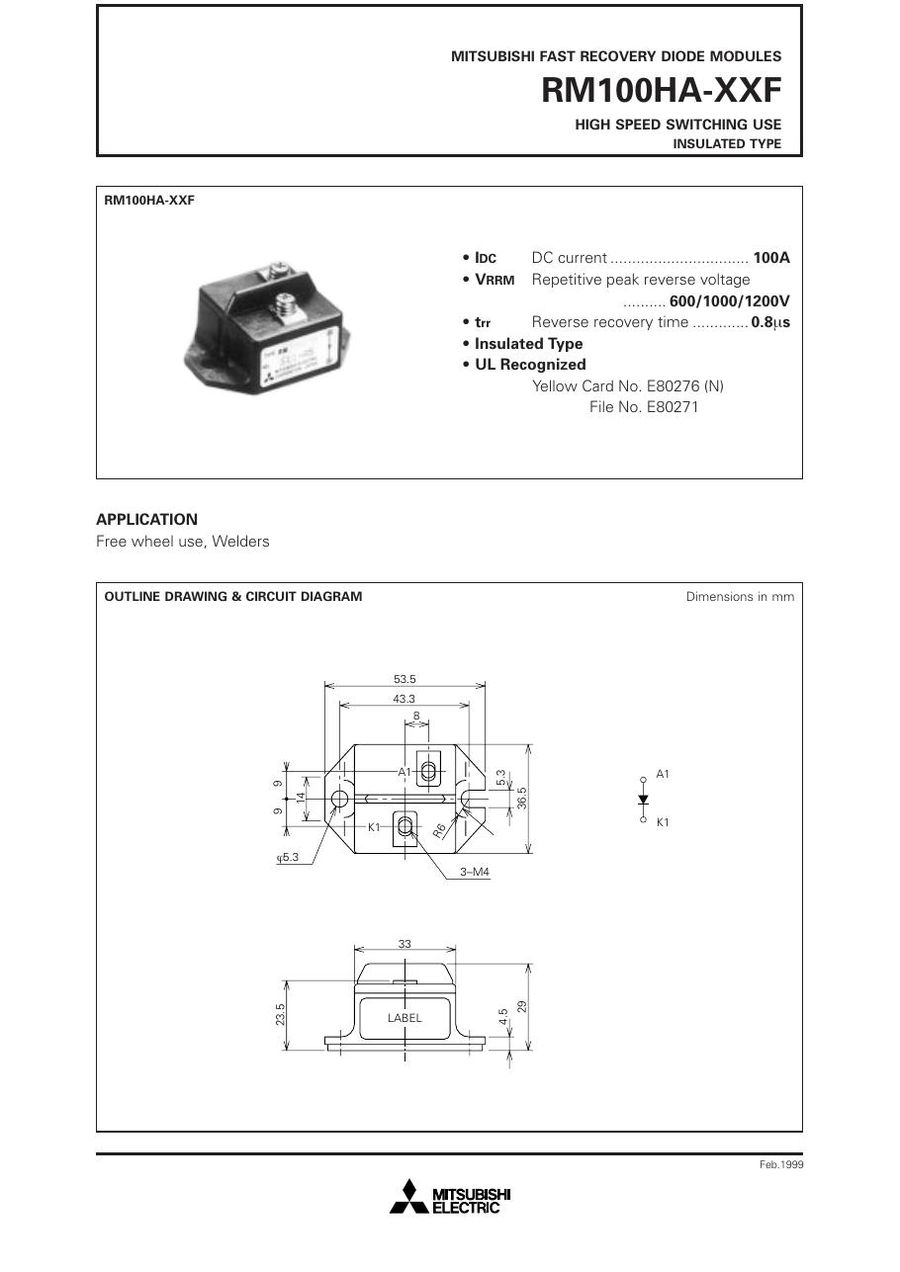

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for RM100HA-12F (reply within 24 hours)
