RM100SZ-6SMitsubishi - Diode Module

RM100SZ-6S Description

The Mitsubishi Electric RM100SZ-6S is a diode module rated at 300 V and 100 A, available from USComponent. This type of device is widely used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM100SZ-6S.

Target Applications

Mitsubishi RM100SZ-6S is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Diode module, three-phase half wave
VRRM / VRSM	300 V / 400 V
IF(AV)	100 A (TC = 125 °C)
IFSM	2000 A (half cycle, 60 Hz)
I²t	1.7 x 10⁴ A²s
VFM max.	1.15 V @ 300 A
Weight	130 g

RM100SZ-6S Video

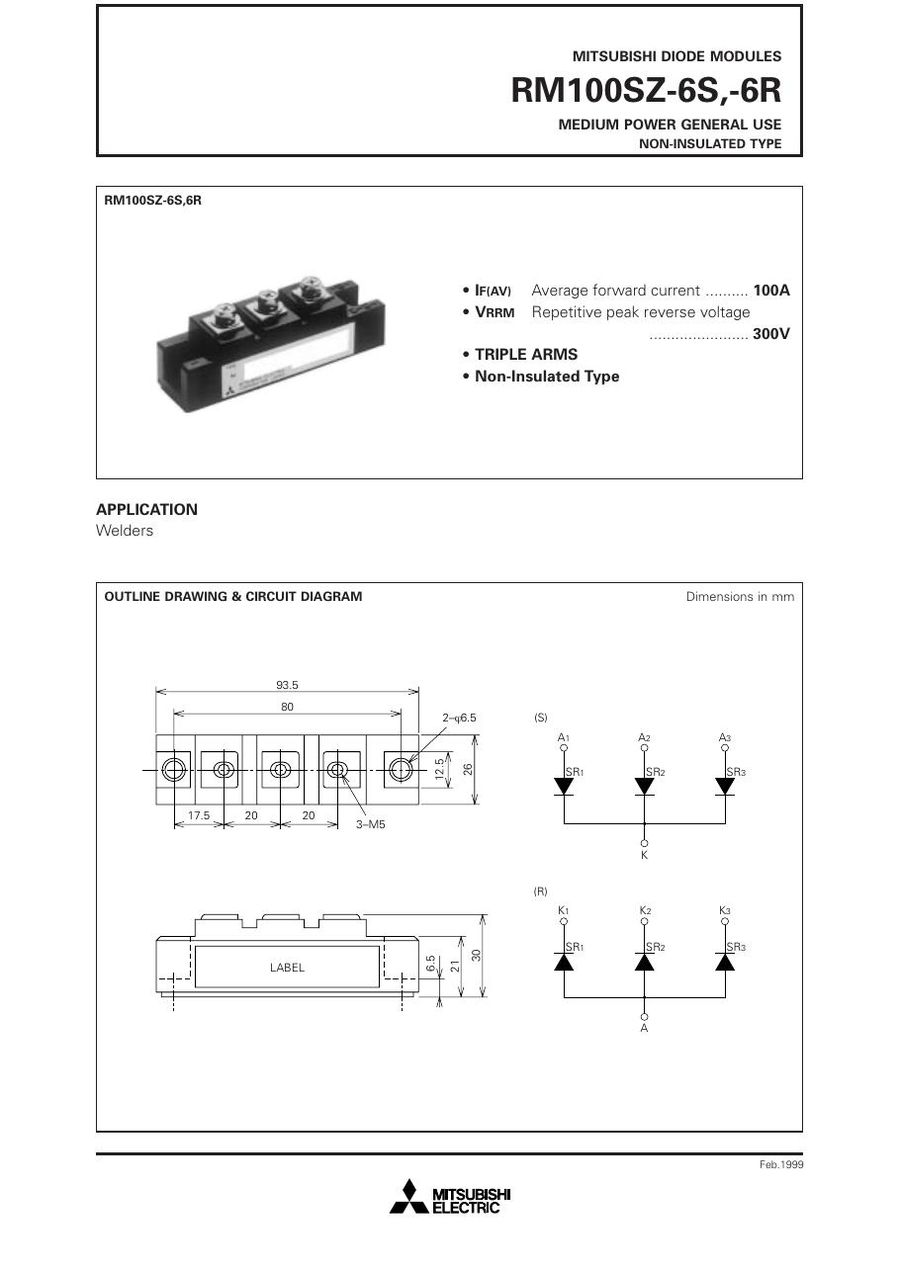

Download RM100SZ-6S Datasheet
