QM150CY-H Mitsubishi - Bipolar Transistor Module

QM150CY-H Description

Rated at 600 V and 150 A, the Mitsubishi Electric QM150CY-H is a Darlington transistor module. Modules of this type were widely used in motor drives, UPS units and power supplies, and many are still running in older equipment today.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the QM150CY-H; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi QM150CY-H is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

QM150CY-H is a 150 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	150 A

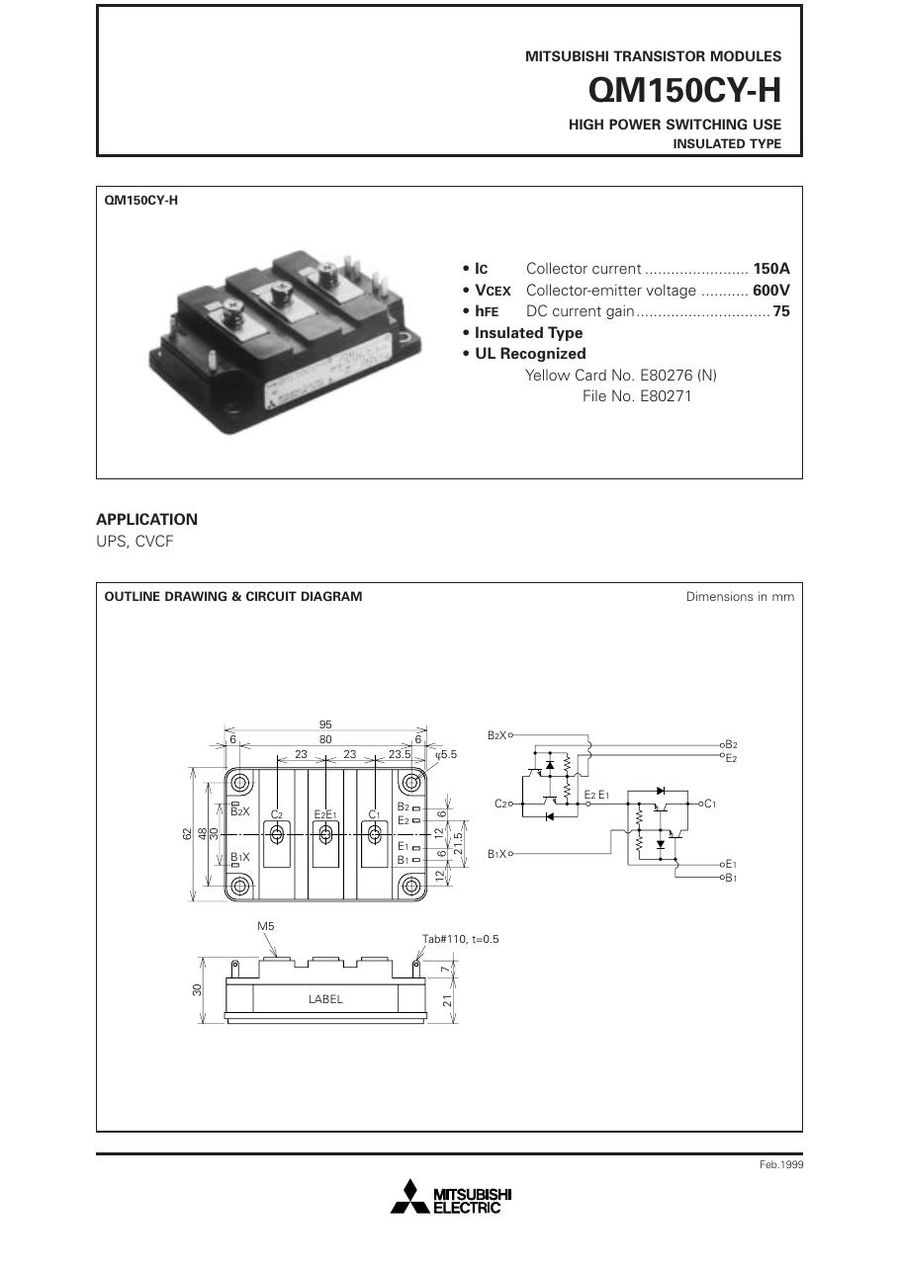

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for QM150CY-H (reply within 24 hours)
