QM150DY-24Mitsubishi - Power Transistor Module

QM150DY-24 Description

The Mitsubishi Electric QM150DY-24 is a Darlington transistor module rated at 1200 V and 150 A, available from USComponent. High Power Switching Use Insulated Type Transistor Module. Typical applications for this type of device include motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM150DY-24.

Target Applications

Mitsubishi QM150DY-24 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Power Transistor Modules
Rated voltage	1200 V
Rated current	150 A

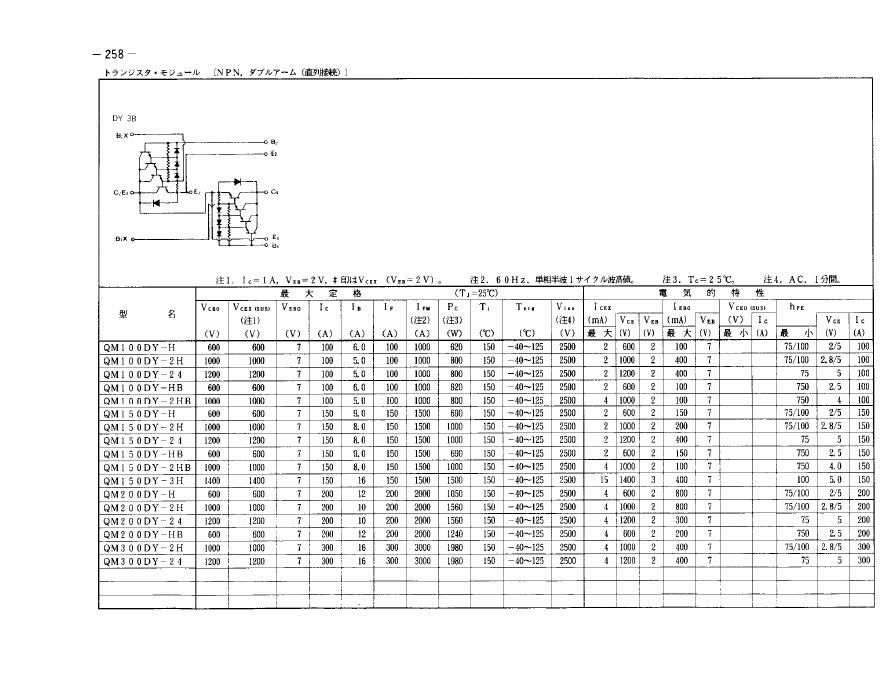

Download QM150DY-24 Datasheet

QM150DY-24 PDF Datasheet
