QM50CY-HMitsubishi - Power Transistor Module

QM50CY-H Description

The Mitsubishi Electric QM50CY-H is a Darlington transistor module rated at 600 V and 50 A, available from USComponent. MEDIUM POWER SWITCHING USE INSULATED TYPE APPLICATION UPS CVCF NC equipment. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM50CY-H.

Summary of Features

Target Applications

Mitsubishi QM50CY-H is used for UPS, CVCF.

Key Specifications

QM50CY-H is a 50 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	50 A
Datasheet	Available on this page (PDF)

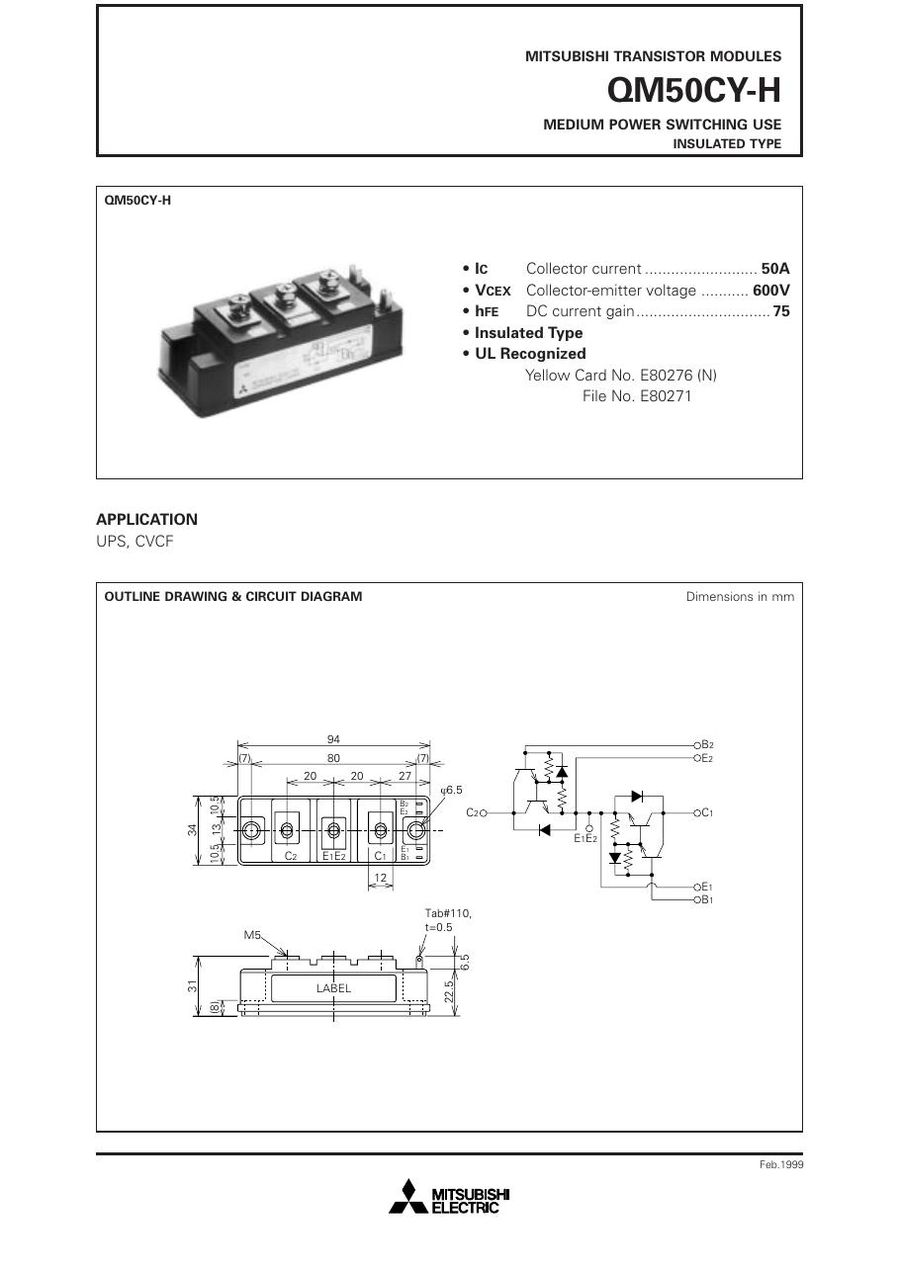

Download QM50CY-H Datasheet

QM50CY-H PDF Datasheet
