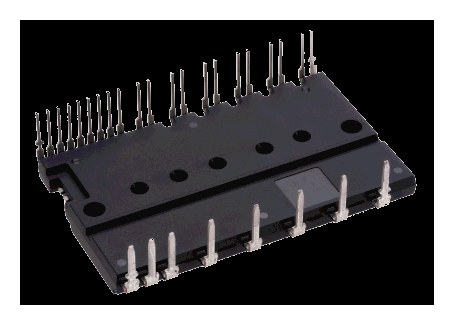

PSS10S72FT Mitsubishi - Intelligent Power Module

PSS10S72FT Description

PSS10S72FT is a 1200 V / 10 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (Mini package). Typical applications: AC 400Vrms(DC voltage:800V or below) class low power motor control.

USComponent supplies PSS10S72FT and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi PSS10S72FT is used for AC 400Vrms(DC voltage:800V or below) class low power motor control.

Key Specifications

PSS10S72FT is a 1200 V / 10 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	DIPIPM (dual in-line intelligent power module)
Series	Ver.4
Configuration	Six-pack (3-phase inverter)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	10 A
Package	Mini
Package size	31 x 52.5 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for PSS10S72FT (reply within 24 hours)
