PS11032 Mitsubishi - Power Transistor Module

PS11032 Description

The Mitsubishi Electric PS11032 is an intelligent power module (IPM), rated for 15 V and 8 A. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the PS11032, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

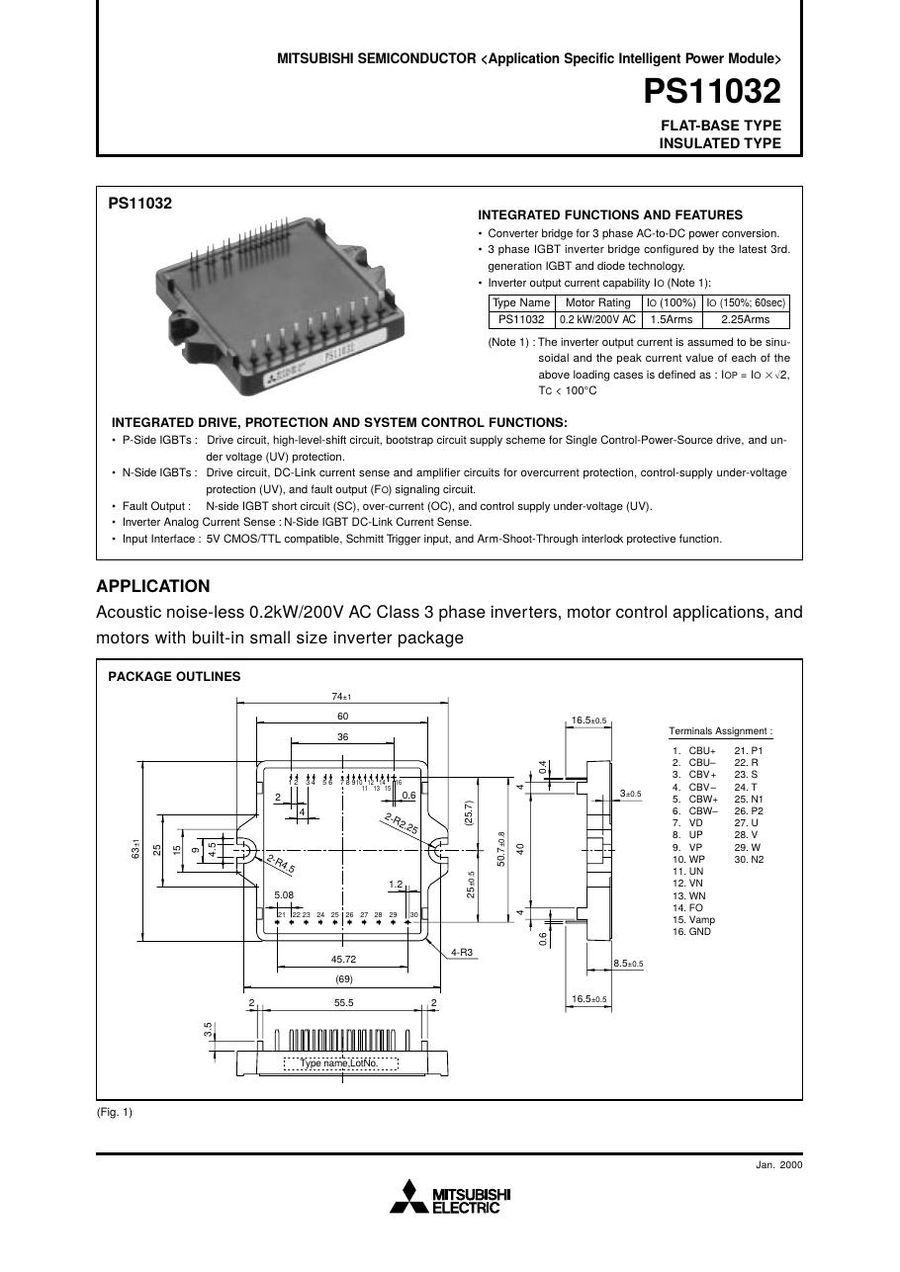

Mitsubishi PS11032 is used for acoustic noise-less 0.2kW/200V AC Class 3 phase inverters, motor control applications, and motors with built-in small size inverter package.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Power Transistor Modules
Rated voltage	15 V
Rated current	8 A

Technical document (PDF)  |  Request a quote for PS11032 (reply within 24 hours)
