PS11016 Mitsubishi - Intelligent Power Module

PS11016 Description

PS11016 is a 15 V, 60 A intelligent power module (IPM) made by Mitsubishi Electric. It is mostly used in small and mid-size AC drives and servo amplifiers, where built-in gate drive and protection save board space. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the PS11016 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

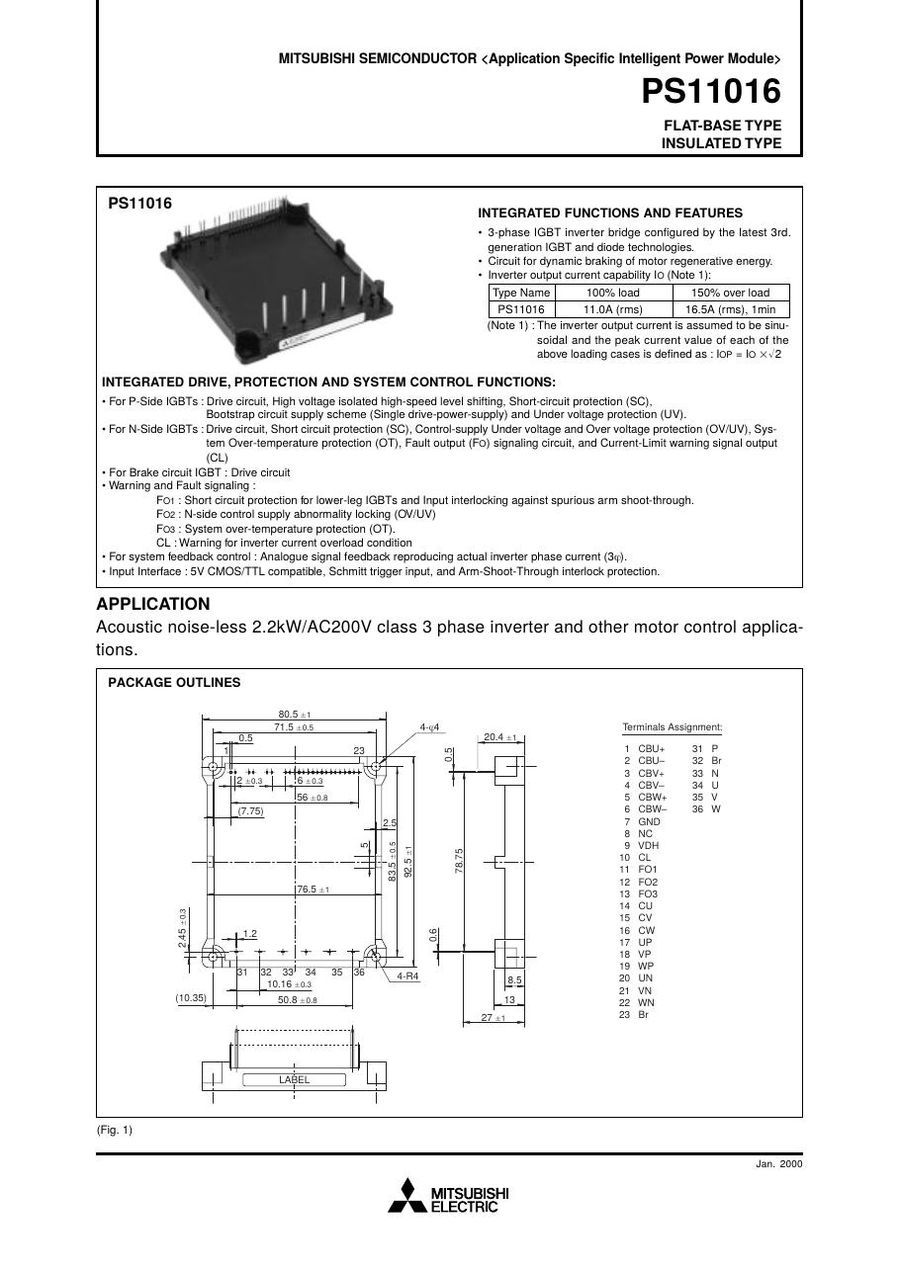

Mitsubishi PS11016 is used for acoustic noise-less 2.2kW/AC200V class 3 phase inverter and other motor control applications.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Intelligent Power Module
Rated voltage	15 V
Rated current	60 A

Technical document (PDF)  |  Request a quote for PS11016 (reply within 24 hours)
