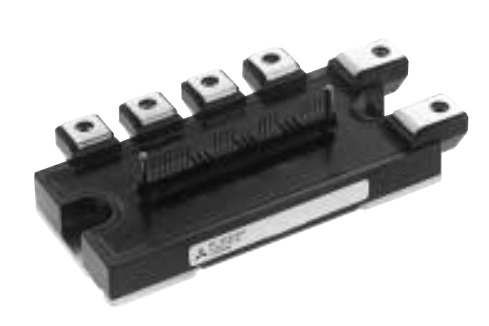

PM75CLA120 Mitsubishi - Intelligent Power Module

PM75CLA120 Description

The Mitsubishi Electric PM75CLA120 is an intelligent power module (IPM), rated for 1200 V and 75 A. It is mostly used in small and mid-size AC drives and servo amplifiers, where built-in gate drive and protection save board space.

We help engineers and repair technicians find parts like the PM75CLA120, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Mitsubishi PM75CLA120 is used for Inverters, UPS, Motion/Servo control and Power supplies.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Intelligent Power Module (IPM), six-pack (three-phase inverter), CSTBT chip
Built-in protection	Error output from each control arm
VCES	1200 V
IC	±75 A (TC = 25 °C)
ICP	±150 A
Isolation voltage	2500 Vrms (60 Hz, AC 1 min)

PM75CLA120 Video

Technical document (PDF)  |  Request a quote for PM75CLA120 (reply within 24 hours)
