PM75CL1B120 Mitsubishi - Intelligent Power Module

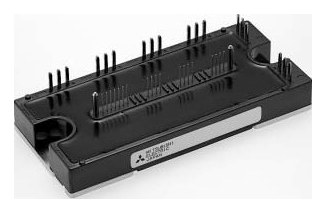

PM75CL1B120 Description
PM75CL1B120 is a 1200 V / 75 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric (L1B package). Typical applications: general purpose inverters, servo drives and other motor controls.
USComponent supplies PM75CL1B120 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 5th generation Full-Gate CSTBT chip
- Over-temperature protection that detects the chip surface temperature
- Error output signal from each protection, upper and lower arm
- Monolithic gate drive and protection logic
- Detection, protection and status indication for short circuit, over-temperature and under-voltage
- Compatible L-series package
- UL Recognized
Target Applications
Mitsubishi PM75CL1B120 is used for General purpose inverters, servo drives and other motor controls.
Key Specifications
PM75CL1B120 is a 1200 V / 75 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | Intelligent power module (IPM) |
| Series | L1 series |
| Configuration | Six-pack (3-phase inverter) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 75 A |
| Package | L1B |
| Package size | 55 x 120 mm |
| Supply status (Mitsubishi) | Not Recommended for New Designs |
| Datasheet | Available on this page (PDF) |
Status: Mitsubishi Electric lists PM75CL1B120 as Not Recommended for New Designs. USComponent can still source PM75CL1B120 and help you find a suitable alternative.
Technical document (PDF) | Request a quote for PM75CL1B120 (reply within 24 hours)
Related Part Numbers
| PM50CL1B120 1200V, 50A | PM75CL1B060 600V, 75A | PM25CL1B120 1200V, 25A | PM100CL1B060 600V, 100A |
| PM50CL1B060 600V, 50A | PM150CL1B060 600V, 150A | PM75CLA060 600V, 75A | PM75CLA120 75A/1200V |
| PM75CL1A120 1200V, 75A | PM75CLS120 1200V, 75A | PM75CL1A060 600V, 75A | PM75CSA120 1200V, 75A |
| PM75CHA060 600V, 75A | PM75CSD060 600V, 75A | PM75CG1B120 1200V, 75A | PM75CSD120 1200V, 75A |
