PM25CLA120 Mitsubishi - Intelligent Power Module

PM25CLA120 Description

The PM25CLA120 from Mitsubishi Electric is an intelligent power module (IPM) with a 1200 V / 25 A rating. An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the PM25CLA120; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi PM25CLA120 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM25CLA120 is a 1,200 V, 25 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	25 A

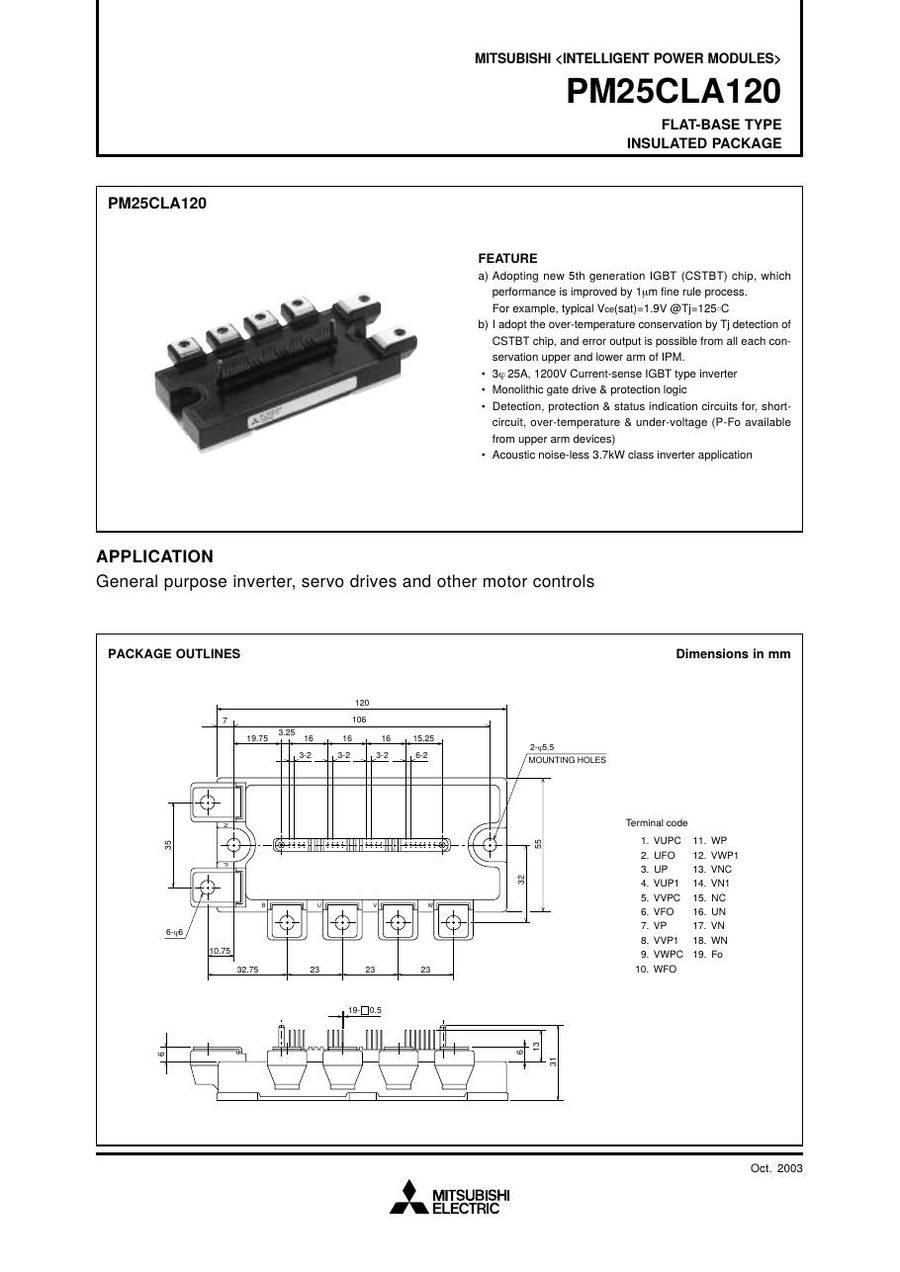

Datasheet	Available on this page (PDF)
