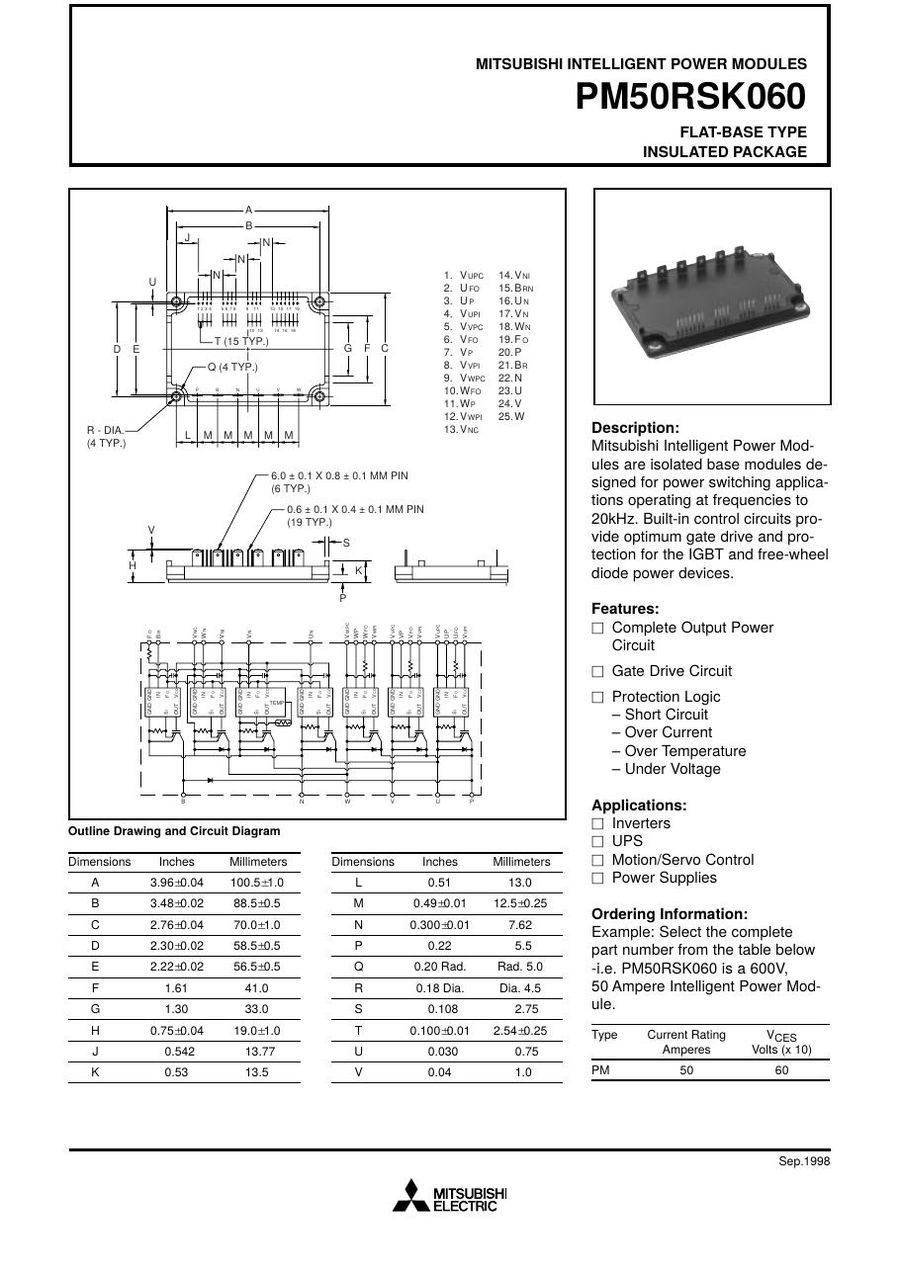

PM50RSK060 Mitsubishi - Intelligent Power Module

PM50RSK060 Description

PM50RSK060 is a 600 V, 50 A intelligent power module (IPM) made by Mitsubishi Electric. An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the PM50RSK060 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi PM50RSK060 is used for Inverters, Small UPS, Motion/Servo Control, AC Motor Control.

Key Specifications

PM50RSK060 is a 600 V / 50 A intelligent power module from Mitsubishi Electric. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	Intelligent power module (IPM)
Configuration	7-in-1 (3-phase inverter + brake)
Package	Flat-base type, insulated package
Collector-emitter voltage (VCES)	600 V
Collector current (±IC), inverter	50 A
Peak collector current (±ICP), inverter	100 A
Collector-emitter saturation voltage (VCE(sat))	1.8 V typ / 2.7 V max (IC = 50 A, VD = 15 V, Tj = 25 °C)
Collector dissipation (PC), inverter	100 W
Brake IGBT (VCES / IC / ICP)	600 V / 15 A / 30 A (TC = 25 °C)
Supply voltage protected by OC and SC (VCC(prot.))	400 V (VD = 13.5 - 16.5 V, Tj = 125 °C)
Isolation voltage (Viso)	2500 Vrms (AC 1 min)
Junction temperature (Tj)	-20 to 150 °C
Built-in protection	Over current, short circuit, over temperature (trip 110 °C typ), under voltage (trip 12.0 V typ)
Datasheet	Available on this page (PDF)
