PM50RVA120Mitsubishi - Intelligent Power Module

PM50RVA120 Description

The Mitsubishi Electric PM50RVA120 is an intelligent power module (IPM) rated at 1200 V and 50 A. This type of device is widely used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM50RVA120.

Summary of Features

Target Applications

Mitsubishi PM50RVA120 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM50RVA120 is a 1,200 V, 50 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	50 A
Datasheet	Available on this page (PDF)

Download PM50RVA120 Datasheet

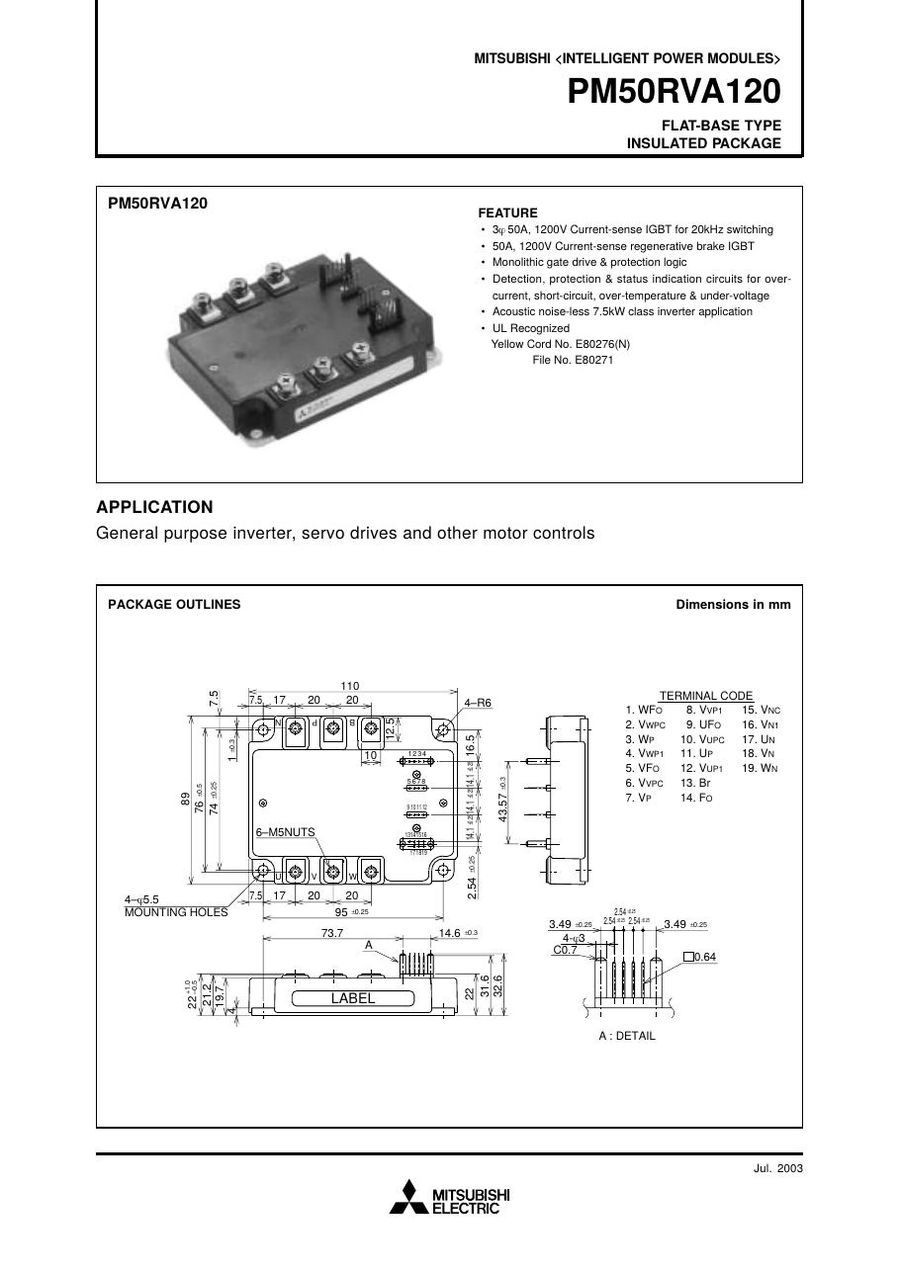

PM50RVA120 PDF Datasheet
