PM400DSA060 Mitsubishi - Intelligent Power Module

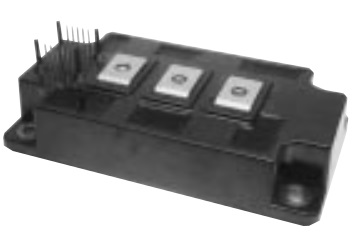

PM400DSA060 Description

Rated at 600 V and 400 A, the Mitsubishi Electric PM400DSA060 is an intelligent power module (IPM). Inside, it has two switches in a half-bridge (2-in-1) arrangement. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the PM400DSA060, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Target Applications

Mitsubishi PM400DSA060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Intelligent Power Module (IPM), dual (single-phase, two IGBTs)
Built-in protection	Short circuit, over current, over temperature, under voltage
VCES	600 V
IC	400 A (TC = 25 °C)
ICP (peak)	800 A
VCE(sat) typ.	1.8 V @ 400 A
Supply voltage protected by OC and SC	400 V
Isolation voltage	2500 Vrms (AC, 1 min)
Weight	630 g
