PM15CHA060Mitsubishi - IPM

PM15CHA060 Description

The Mitsubishi Electric PM15CHA060 is an intelligent power module (IPM) rated at 300 V and 15 A. Typical applications for this type of device include compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM15CHA060.

Summary of Features

Target Applications

Mitsubishi PM15CHA060 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

PM15CHA060 is a 600 V, 15 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	15 A
Datasheet	Available on this page (PDF)

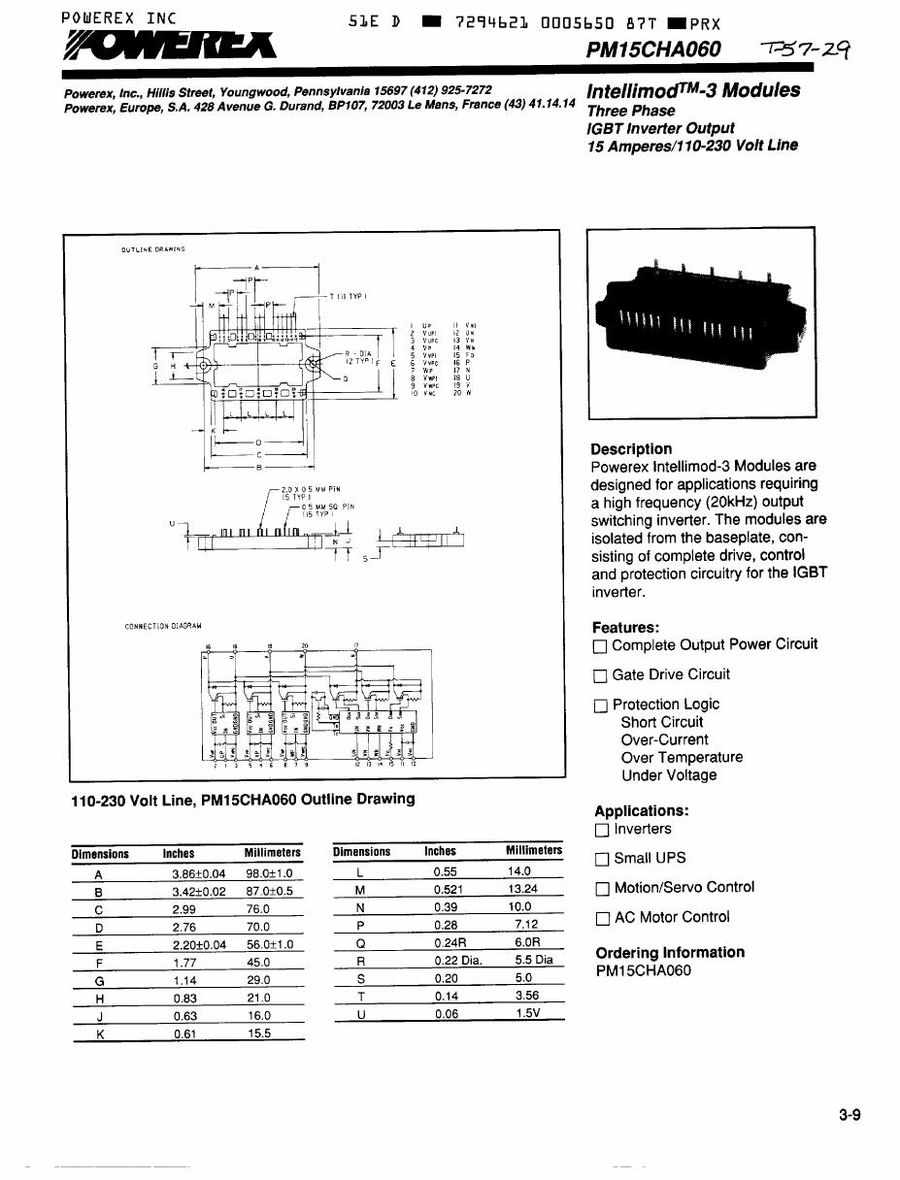

Download PM15CHA060 Datasheet

PM15CHA060 PDF Datasheet
