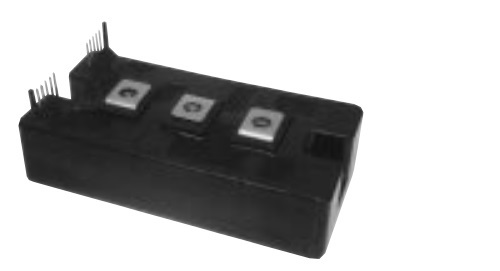

PM150DSA-120 Mitsubishi - Intelligent Power Module

PM150DSA-120 Description

The PM150DSA-120 from Mitsubishi Electric is an intelligent power module (IPM) with a 150 A rating. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the PM150DSA-120, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Mitsubishi PM150DSA-120 is used for Inverters UPS Motion/Servo Control Power Supplies.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Mitsubishi Intelligent Power Module (IPM), flat-base type, dual (single-phase, two IGBTs)
Built-in protection	Short circuit, over current, over temperature, under voltage
VCES	1200 V
IC	150 A (TC = 25 °C)
ICP (peak)	300 A
VCE(sat) typ.	2.3 V @ 150 A
Supply voltage protected by OC and SC	800 V
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M5: 2.5 - 3.5 N·m
Mounting torque	M5: 2.5 - 3.5 N·m
Outline length	110 mm
Weight	430 g
