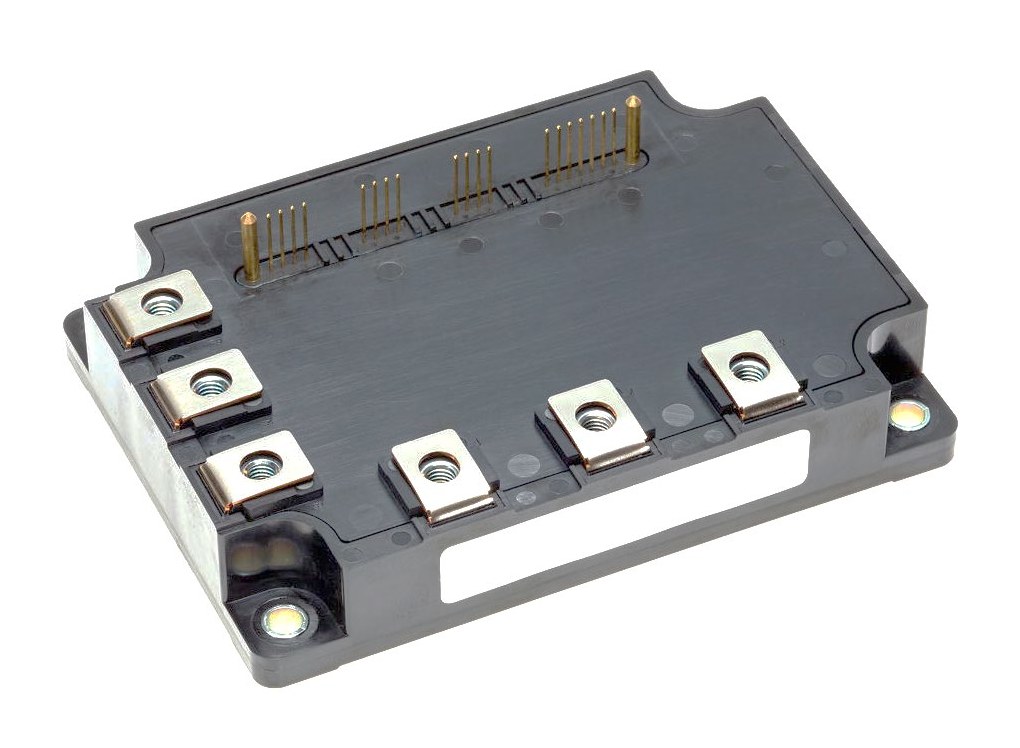

PM300CG1C065 Mitsubishi - Intelligent Power Module
PM300CG1C065 Description
PM300CG1C065 is a 650 V / 300 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric (G1 C-Package package). Typical applications: general purpose inverter, servo drives and other motor controls.
USComponent supplies PM300CG1C065 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Adopting Full-Gate CSTBT chip
- The over-temperature protection which detects the chip surface temperature of CSTBT is adopted
- Error output signal is available from each protection upper and lower arm of IPM
- Outputting an error signal corresponding to the abnormal state (error mode identification)
- UL Recognized under UL1557, File No. E323585
Target Applications
Mitsubishi PM300CG1C065 is used for General purpose inverter, servo drives and other motor controls.
Key Specifications
PM300CG1C065 is a 650 V / 300 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | Intelligent power module (IPM) |
| Series | G1 series |
| Configuration | Six-pack (3-phase inverter) |
| Collector-emitter voltage (VCES) | 650 V |
| Collector current (IC) | 300 A |
| Isolation voltage (Viso) | 2,500 V RMS |
| Package | G1 C-Package |
| Package size | 85 x 120 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for PM300CG1C065 (reply within 24 hours)
Related Part Numbers
| PM200CG1C065 650V, 200A | PM450CG1C065 650V, 450A | PM200CG1C120 1200V, 200A | PM150CG1C120 1200V, 150A |
| PM100CG1C120 1200V, 100A | PM300CJA-060 600V, 300A | PM300CDA120 1200V, 300A | PM300CL1A060 600V, 300A |
| PM300CBS060 600V, 300A | PM300CLA060 600V, 300A | PM300CLA120 1200V, 300A | PM300CLS060 600V, 300A |
| PM300CSA060 600V, 300A | PM300CSD060 600V, 300A | PM300CSE060 600V, 300A | PM300CVA060 600V, 300A |
