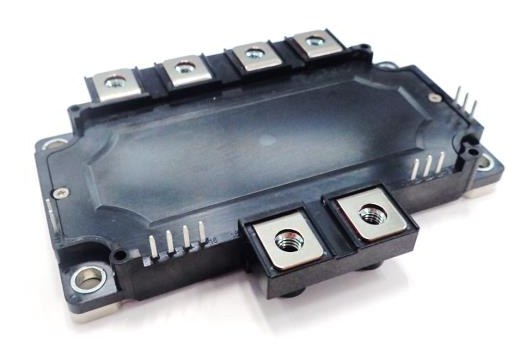

FMF800DX-24B Mitsubishi - SiC MOSFET Module
FMF800DX-24B Description
FMF800DX-24B is a 1200 V / 800 A dual (half-bridge) full SiC MOSFET module from Mitsubishi Electric (DX package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.
USComponent supplies FMF800DX-24B and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Silicon Carbide MOSFET + Silicon Carbide Schottky Barrier Diode
- Flat base Type
- Copper base plate
- RoHS Directive compliant
- Recognized under UL1557, File E323585
Target Applications
Mitsubishi FMF800DX-24B is used for AC Motor Control, Motion/Servo Control, Power supply.
Key Specifications
FMF800DX-24B is a 1200 V / 800 A dual (half-bridge) full SiC MOSFET module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | Full SiC MOSFET module |
| Series | B series |
| Configuration | Dual (half-bridge) |
| Drain-source voltage (VDSS) | 1200 V |
| Drain current (ID) | 800 A |
| Isolation voltage (Viso) | 5,000 V RMS |
| Package | DX |
| Package size | 92.3 × 121.7 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for FMF800DX-24B (reply within 24 hours)
