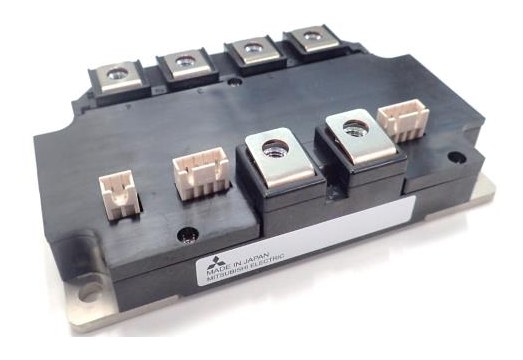

FMF300DXZ-34B Mitsubishi - SiC MOSFET Module

FMF300DXZ-34B Description

FMF300DXZ-34B is a 1700 V / 300 A dual (half-bridge) full SiC MOSFET module from Mitsubishi Electric (DXZ package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.

USComponent supplies FMF300DXZ-34B and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi FMF300DXZ-34B is used for AC Motor Control, Motion/Servo Control, Power supply.

Key Specifications

FMF300DXZ-34B is a 1700 V / 300 A dual (half-bridge) full SiC MOSFET module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	Full SiC MOSFET module
Series	B series
Configuration	Dual (half-bridge)
Drain-source voltage (VDSS)	1700 V
Drain current (ID)	300 A
Package	DXZ
Package size	79.6 × 122 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FMF300DXZ-34B (reply within 24 hours)
