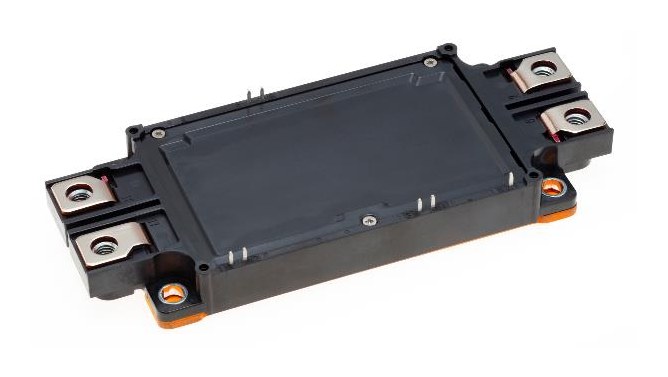

FMF600DXE-24BN Mitsubishi - SiC MOSFET Module

FMF600DXE-24BN Description

FMF600DXE-24BN is a 1200 V / 600 A dual (half-bridge) full SiC MOSFET module from Mitsubishi Electric (NX Type package). Typical applications: HF converter, Power supply, Motor drive.

USComponent supplies FMF600DXE-24BN and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi FMF600DXE-24BN is used for HF converter, Power supply, Motor drive.

Key Specifications

FMF600DXE-24BN is a 1200 V / 600 A dual (half-bridge) full SiC MOSFET module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	Full SiC MOSFET module
Series	B series
Configuration	Dual (half-bridge)
Drain-source voltage (VDSS)	1200 V
Drain current (ID)	600 A
Isolation voltage (Viso)	4,000 V RMS
Package	NX Type
Package size	62 × 152 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FMF600DXE-24BN (reply within 24 hours)
