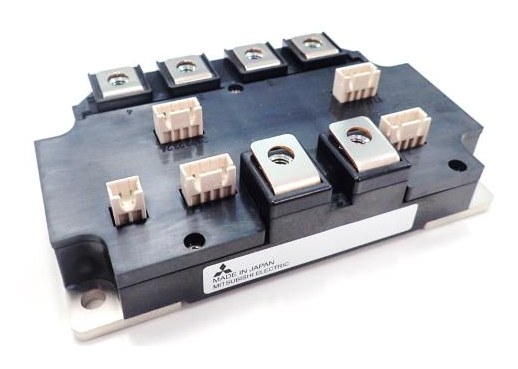

FMF400BXZ-24B Mitsubishi - SiC MOSFET Module

FMF400BXZ-24B Description

FMF400BXZ-24B is a 1200 V / 400 A H-bridge full SiC MOSFET module from Mitsubishi Electric (BXZ package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.

USComponent supplies FMF400BXZ-24B and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi FMF400BXZ-24B is used for AC Motor Control, Motion/Servo Control, Power supply.

Key Specifications

FMF400BXZ-24B is a 1200 V / 400 A H-bridge full SiC MOSFET module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	Full SiC MOSFET module
Series	B series
Configuration	H-bridge
Drain-source voltage (VDSS)	1200 V
Drain current (ID)	400 A
Isolation voltage (Viso)	5,000 V RMS
Package	BXZ
Package size	79.6 × 122 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FMF400BXZ-24B (reply within 24 hours)
